APC-16-700

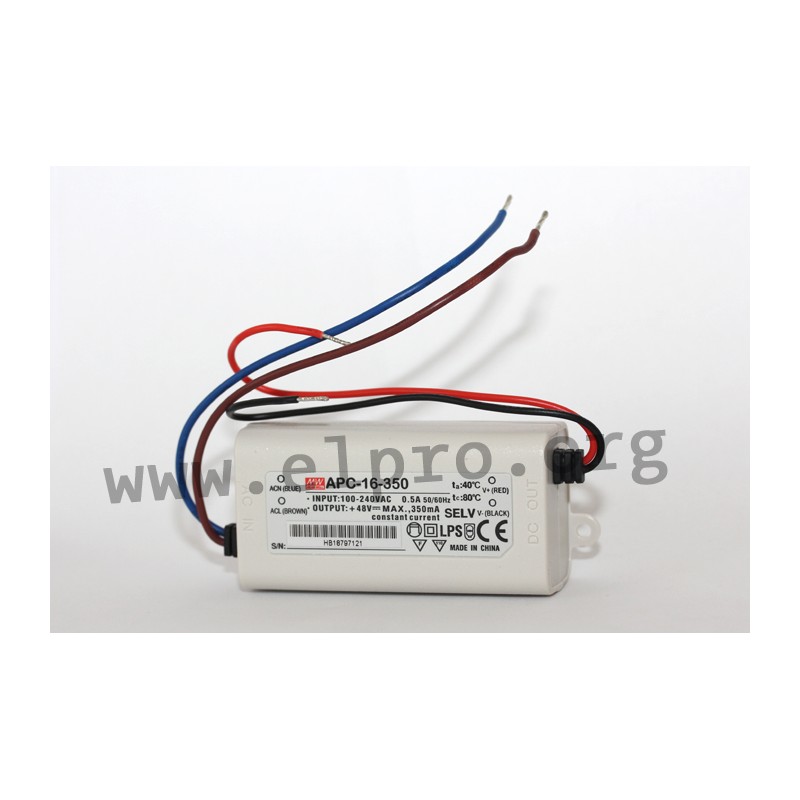

Mean Well LED driver series APC-16

LED drivers in a plastic housing (IP42) with a constant current, 16,8W and a universal input. These devices are protected against overvoltage as well as short circuit and comply with UL8750, IEC61347-1, IEC61347-2-13 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APC-16-350 and APC-16-700.

  • single output
  • output: 16,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C

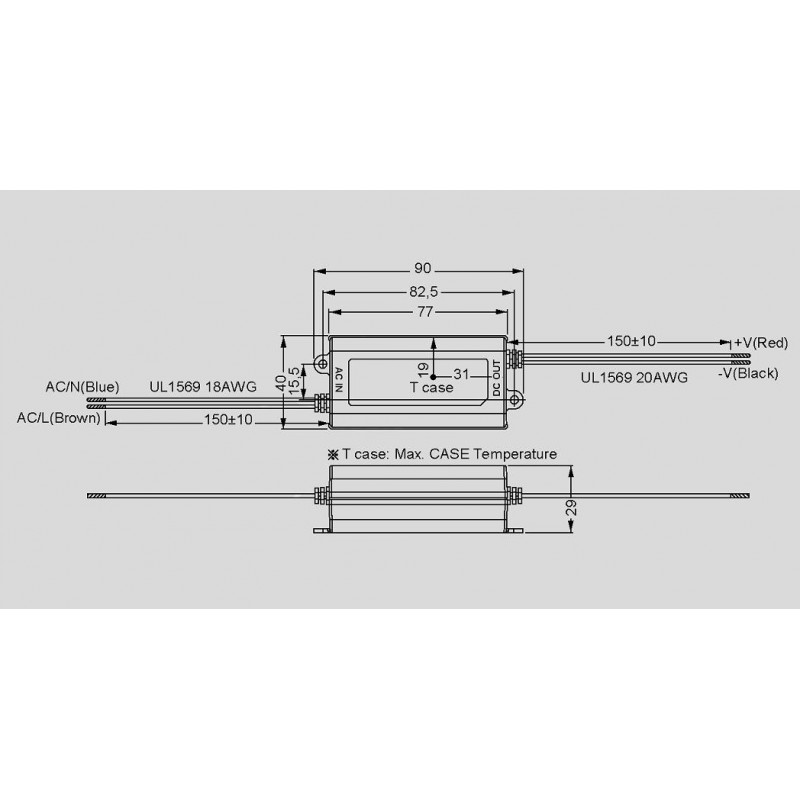

  • dimensions: 77x40x29mm
  • weight: 100g
Meanwell APC-16 series

APC-16-700

36113 APC-16-700 APC-16-700 4711287438580 Mean Well LED driver series APC-16. LED drivers in a plastic housing (IP42) with a constant current, 16,8W and a universal input. These devices are protected against overvoltage as well as short circuit and comply with UL8750, IEC61347-1, IEC61347-2-13 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APC-16-350 and APC-16-700. single output output: 16,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 77x40x29mm weight: 100g

Specifications

manufacturer
Manufacturer's name APC-16-700
GTIN 4711287438580
Output voltage [V] 9...24
Phase 2 phase
Output current range [mA] 0,7
Efficiency [%] 83
Output voltage tolerance: [%] 5
Output power [W] 16,8
Ripple [mVp-p] 250
Data Sheet

Unit price

5,39 €

Volume discounts

Quantity Unit price
50 + 4,89 €

Stock: 403
Next incoming goods:
CW 24/2024
600 units

Further delivery:
CW 32/2024
