APC-35-700

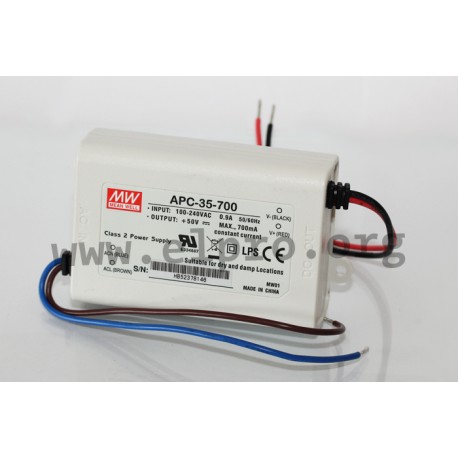

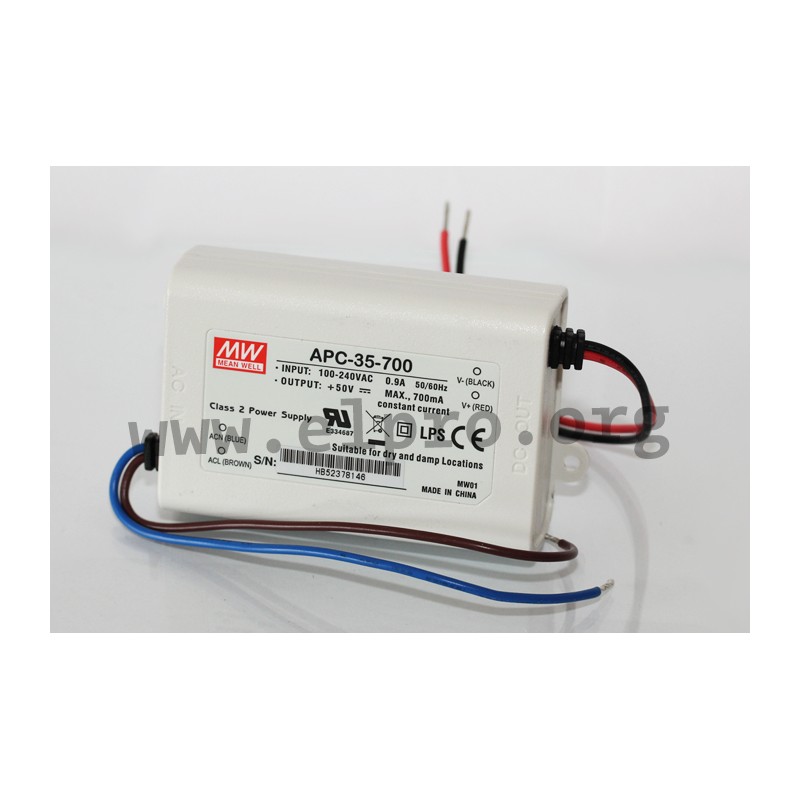

Mean Well LED driver series APC-35

LED drivers in a plastic housing (IP42) with a constant current, 35W and a universal input. These devices are protected against overload (by current limiting), short circuit as well as overvoltage and comply with EN55032. They are not dimmable and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APC-35-350, APC-35-500, APC-35-700 and APC-35-1050.

  • single output
  • output: 34,7 to 35W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C

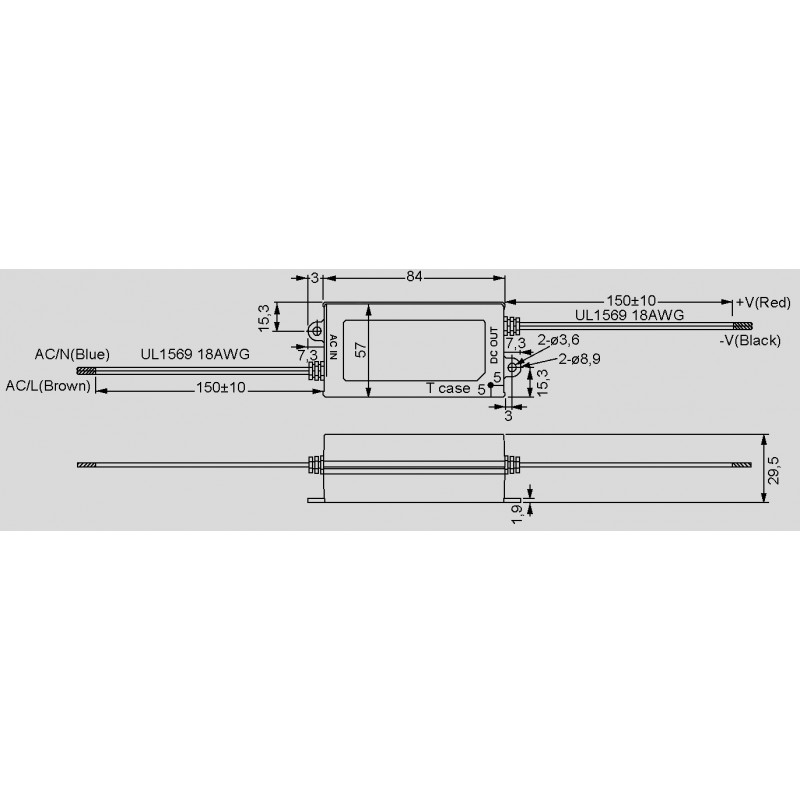

  • dimensions: 84x57x29,5mm
  • weight: 180g
APC-35-700

APC-35-700

45027 APC-35-700 APC-35-700 4711287438665 Mean Well LED driver series APC-35. LED drivers in a plastic housing (IP42) with a constant current, 35W and a universal input. These devices are protected against overload (by current limiting), short circuit as well as overvoltage and comply with EN55032. They are not dimmable and are suitable for LED lighting applications. We offer the following types of this Mean Well series: APC-35-350, APC-35-500, APC-35-700 and APC-35-1050. single output output: 34,7 to 35W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C dimensions: 84x57x29,5mm weight: 180g

Specifications

manufacturer
Manufacturer's name APC-35-700
GTIN 4711287438665
Output voltage [V] 15...50
Output current tolerance [%] 5
Efficiency [%] 84
Output current range [A] 0,7
Output power [W] 35
Ripple [mVp-p] 350
Data Sheet

Unit price

9,39 €

Volume discounts

Quantity Unit price
50 + 8,79 €

Stock: 1170
Further delivery:
CW 32/2024
