APV-12-24

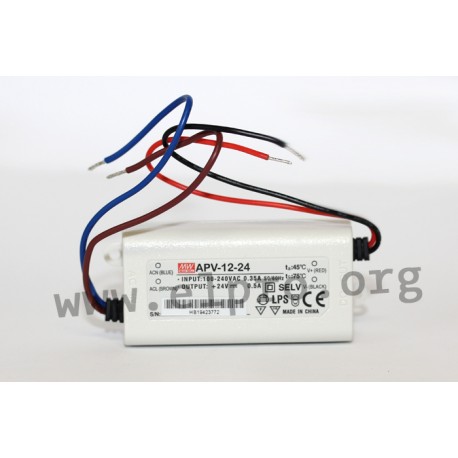

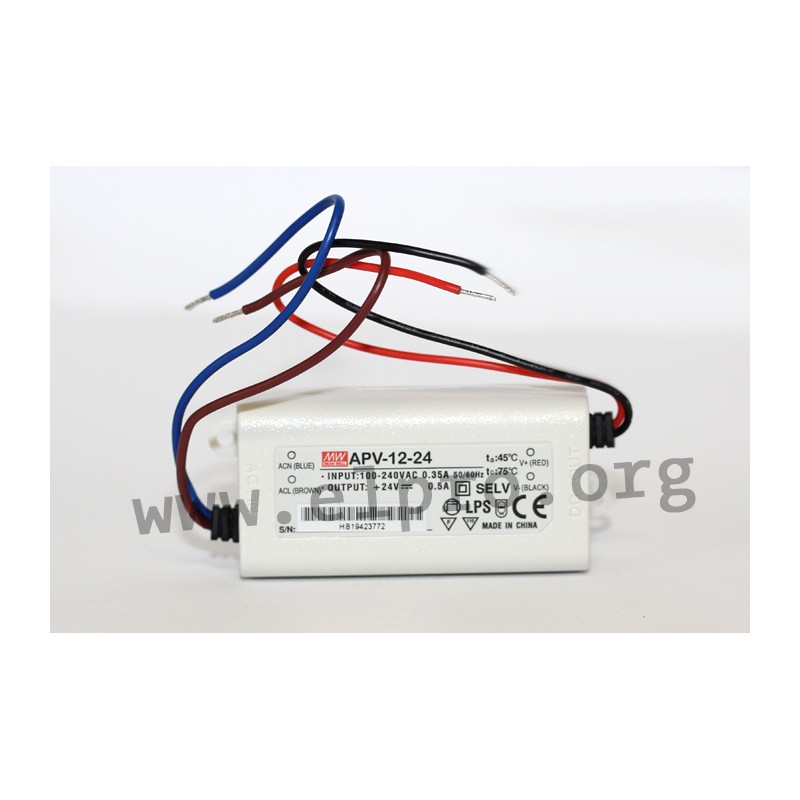

Mean Well LED driver series APV-12

LED drivers in a plastic housing (IP42) with a constant voltage, 12W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APV-12-5, APV-12-12, APV-12-15 and APV-12-24.

  • single output
  • output: 10 to 12W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +70°C

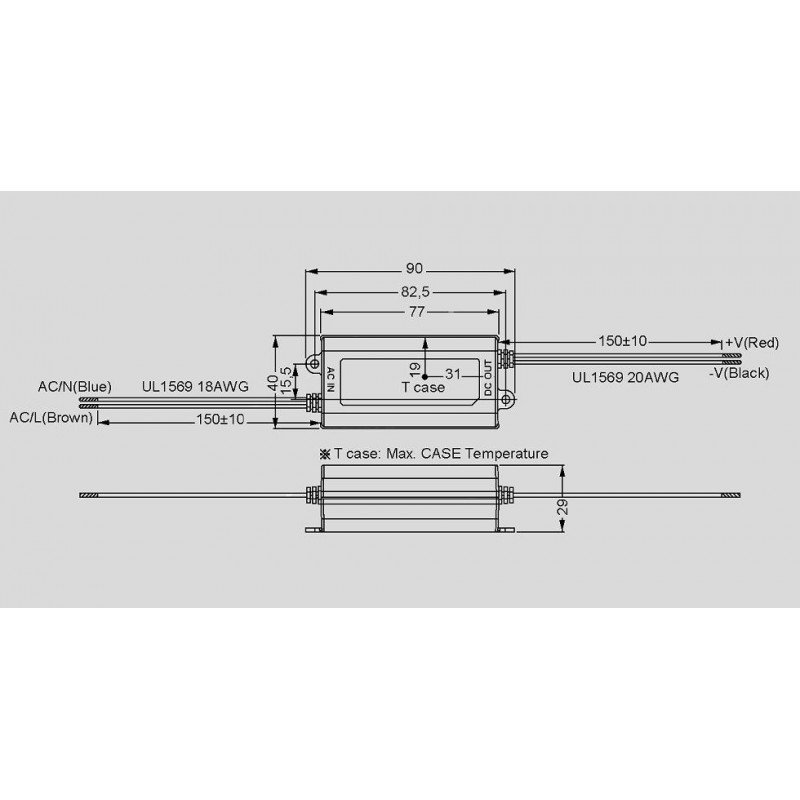

  • dimensions: 77x40x29mm
  • weight: 80g
Meanwell APV-12 series

APV-12-24

36110 APV-12-24 APV-12-24 4711287438368 Mean Well LED driver series APV-12. LED drivers in a plastic housing (IP42) with a constant voltage, 12W and a universal input. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL8750, EN61347-1, EN61347-2-13, IEC61347-2-13, IEC61347-1 as well as EN55032. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: APV-12-5, APV-12-12, APV-12-15 and APV-12-24. single output output: 10 to 12W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +70°C dimensions: 77x40x29mm weight: 80g

Specifications

manufacturer
Manufacturer's name APV-12-24
GTIN 4711287438368
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...0,5
Output voltage tolerance: [%] 5
Output power [W] 12
Ripple [mVp-p] 150
Data Sheet

Unit price

4,79 €

Volume discounts

Quantity Unit price
50 + 4,29 €

Stock: 15
Next incoming goods:
CW 23/2024
1180 units

Further delivery:
CW 32/2024
