DET 01M-15

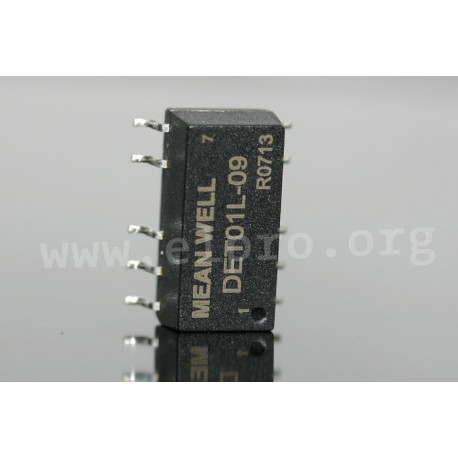

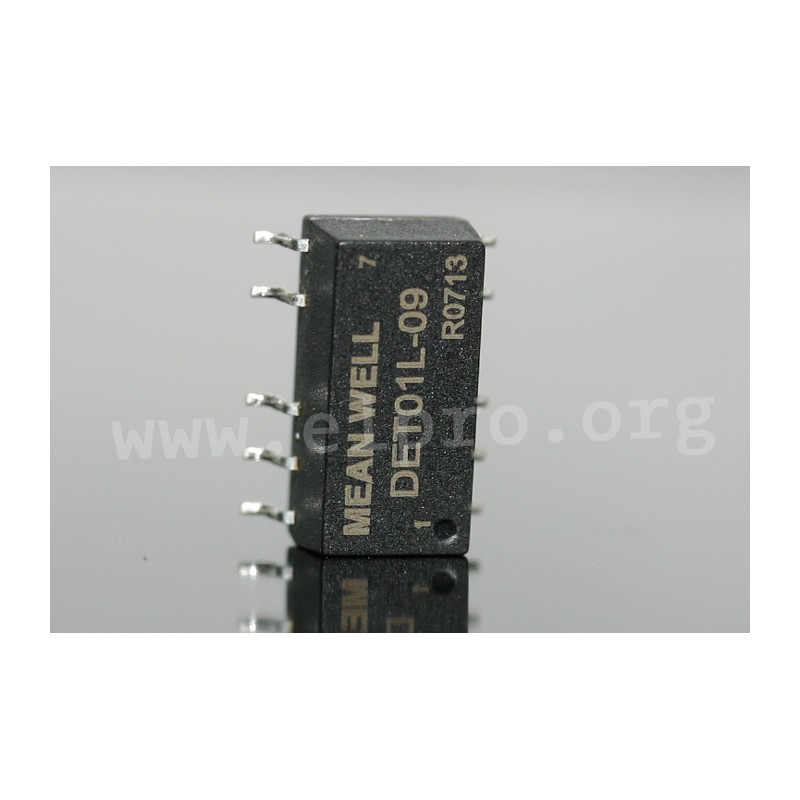

Mean Well DC/DC converter series DET01

Unregulated DC/DC converters in an SMD plastic housing with 1W. These low-cost devices have a fanless design and are suitable for direct PCB mounting. They have a high reliability and are protected against short circuit. We offer the following types of this Mean Well series: DET 01L-15, DET 01M-05 and DET 01M-15.

  • dual output
  • output: 1W
  • output voltage tolerance: ±8%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +85°C
  • weight: 1,7g
Meanwell DET01 series

DET 01M-15

30394 DET 01M-15 DET01M-15 DET01M-15 Mean Well DC/DC converter series DET01. Unregulated DC/DC converters in an SMD plastic housing with 1W. These low-cost devices have a fanless design and are suitable for direct PCB mounting. They have a high reliability and are protected against short circuit. We offer the following types of this Mean Well series: DET 01L-15, DET 01M-05 and DET 01M-15. dual output output: 1W output voltage tolerance: ±8% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC operating temperature: -40 to +85°C weight: 1,7g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name DET01M-15
Case SMD case
Input [V DC] 10,8...13,2
Output [mA] 0...33
Output [V] 15
Efficiency [%] 75
Output2 [mA] 0...-33
Output2 [V] -15
Data Sheet

Unit price

4,09 €

Stock: 15
