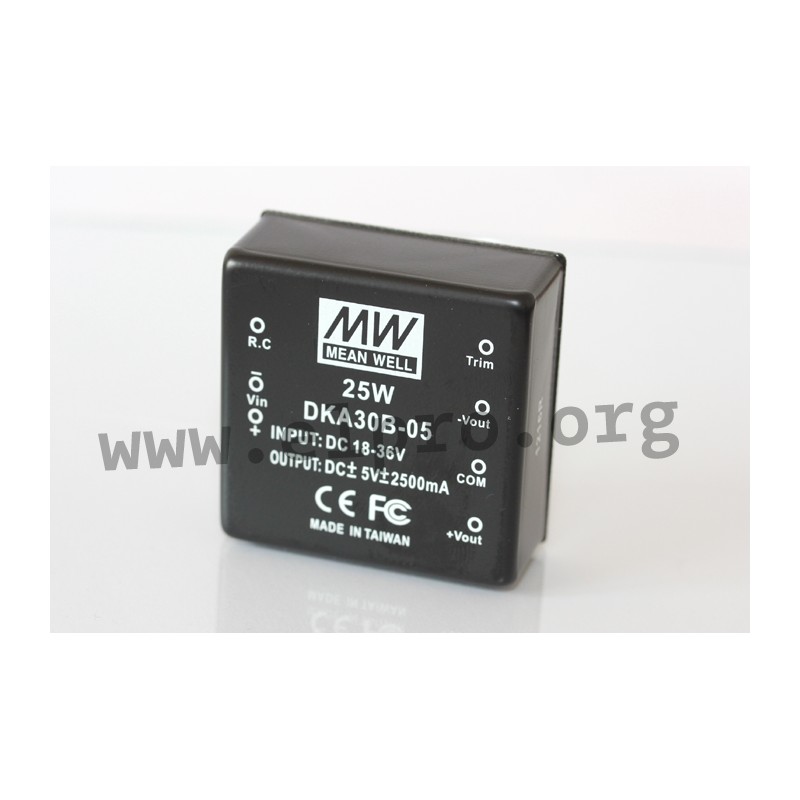

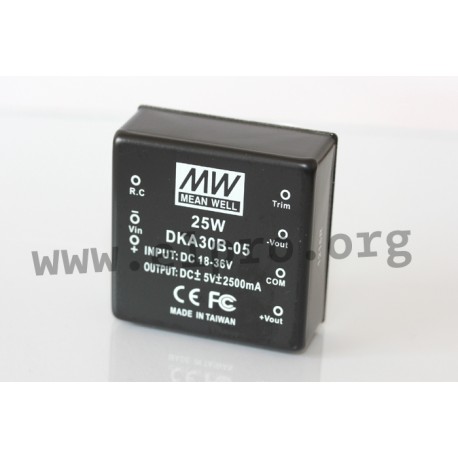

DKA30B-05

Mean Well DC/DC converter series DKA30

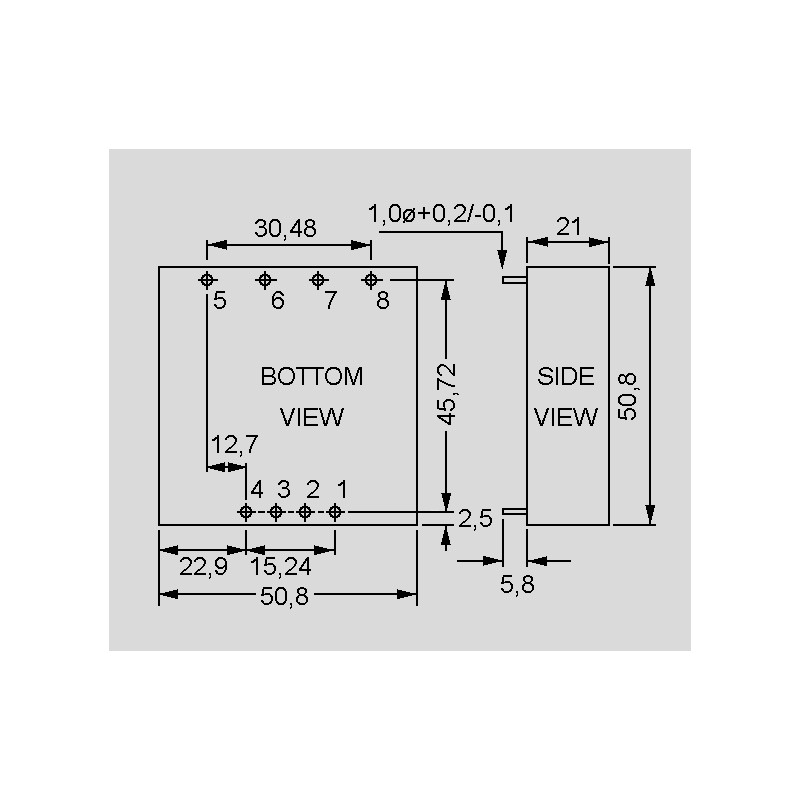

DC/DC converters in a 2"x1,8" DIL housing with a built-in EMI filter, a remote ON/OFF control and a trimming output (±10%). These devices require no minimum load and are protected against overload as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKA30A-05, DKA30A-12, DKA30A-15, DKA30B-05, DKA30B-12, DKA30B-15, DKA30C-05, DKA30C-12 and DKA30C-15.

  • dual output
  • output: 25 to 30W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1000V DC
  • operating temperature: -40 to +85°C
  • weight: 110g
Meanwell DKA30 series

DKA30B-05

37665 DKA30B-05 DKA30B-05 4711287471457 Mean Well DC/DC converter series DKA30. DC/DC converters in a 2"x1,8" DIL housing with a built-in EMI filter, a remote ON/OFF control and a trimming output (±10%). These devices require no minimum load and are protected against overload as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKA30A-05, DKA30A-12, DKA30A-15, DKA30B-05, DKA30B-12, DKA30B-15, DKA30C-05, DKA30C-12 and DKA30C-15. dual output output: 25 to 30W output voltage tolerance: ±2% maximal ripple and noise: 100mVpp withstand voltage: 1000V DC operating temperature: -40 to +85°C weight: 110g

Specifications

manufacturer
Manufacturer's name DKA30B-05
GTIN 4711287471457
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] ±250...±2500
Efficiency [%] 80
Ripple [mVp-p] 100
Data Sheet

Unit price

26,19 €

Volume discounts

Quantity Unit price
50 + 24,39 €

Stock: 11
Further delivery:
CW 39/2024
