DR 75 48V 1,6A

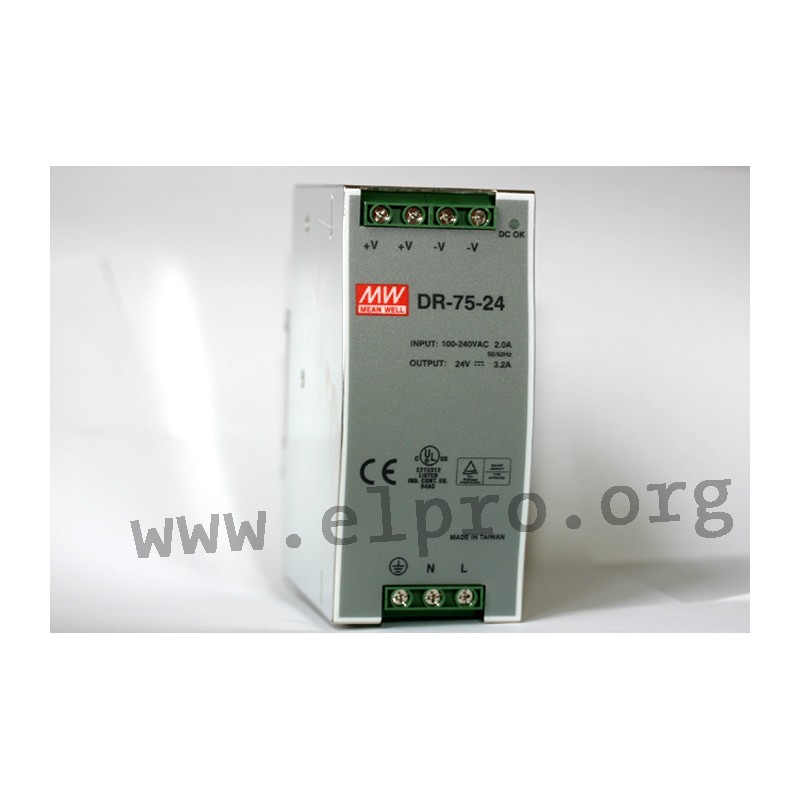

Mean Well DIN rail power supply series DR-75

Switching power supplies in an enclosed housing with 75W, a universal input, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with UL508, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DR-75-12, DR-75-24 and DR-75-48.

  • single output
  • output: 76 to 76,8W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • overload protection: 105 to 150%
  • leakage current: <1mA
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C

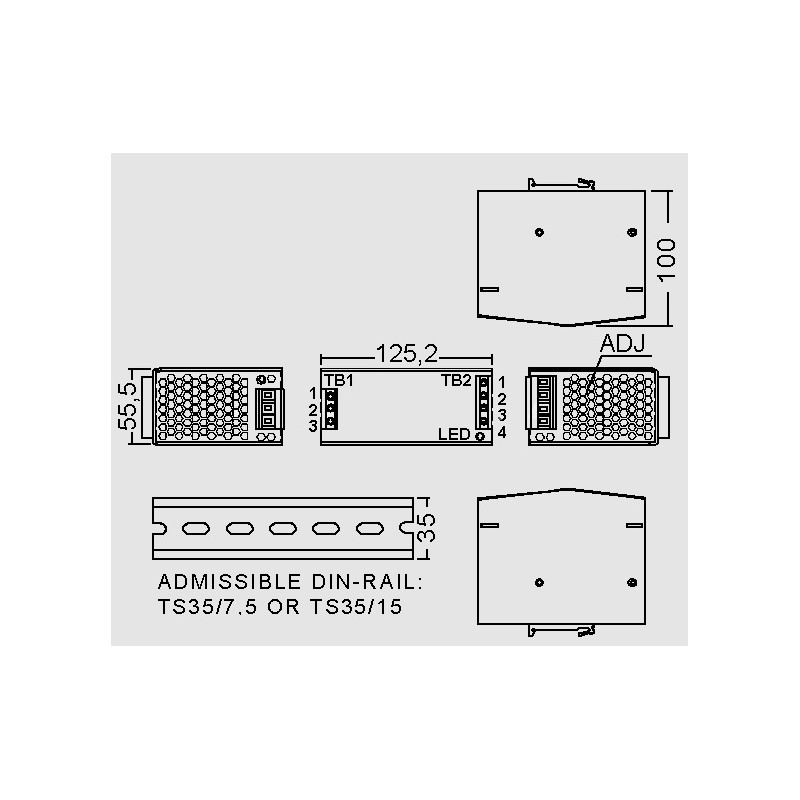

  • dimensions: 55,5x125,2x100mm
  • weight: 600g

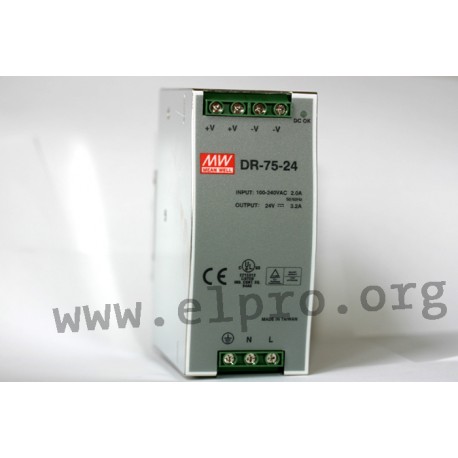

Meanwell DR 75 series

DR 75 48V 1,6A

17780 DR 75 48V 1,6A DR-75-48 DR-75-48 Mean Well DIN rail power supply series DR-75. Switching power supplies in an enclosed housing with 75W, a universal input, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with UL508, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DR-75-12, DR-75-24 and DR-75-48. single output output: 76 to 76,8W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A overload protection: 105 to 150% leakage current: &lt;1mA withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C dimensions: 55,5x125,2x100mm weight: 600g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name DR-75-48
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...1,6
Output voltage tolerance: [%] 1
Output power [W] 76,8
Output voltage adjustment [V] 48...53
Ripple [mVp-p] 240
Data Sheet

Unit price

32,09 €

Stock: 16
