DRC-40A

Mean Well battery charger series DRC-40

Switching power supplies in a DIN rail housing with 40W, an LED indicator for power on, a universal input, a battery low protection, a power fail signal, a battery low signal and screw terminals (touch guard). These devices have a UPS function (battery charger) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a battery polarity protection (by fuse) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DRC-40A and DRC-40B.

  • single output
  • output: 40,02W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 300g

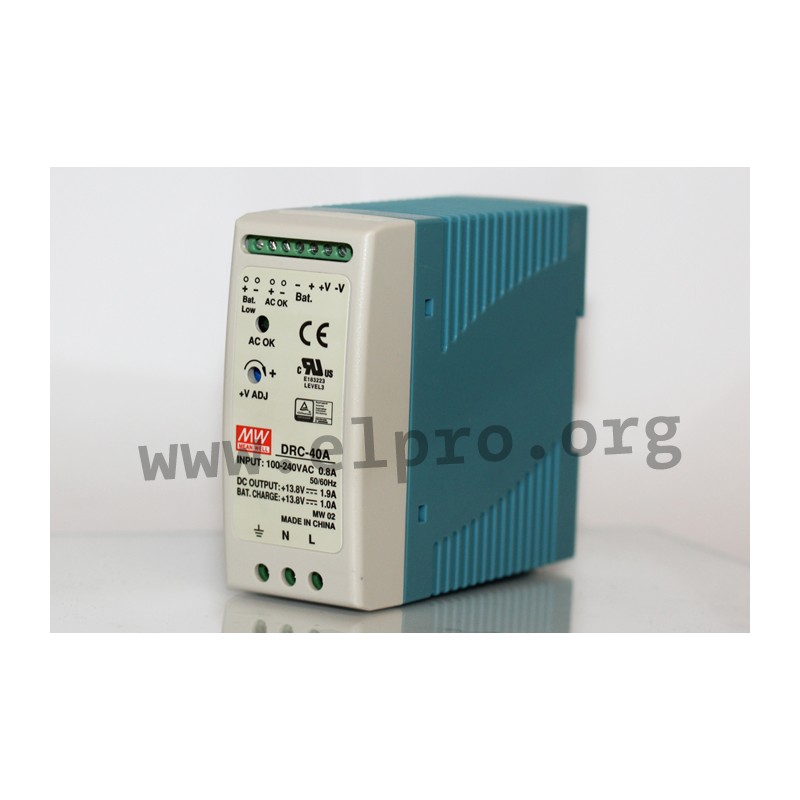

Meanwell DRC-40A

DRC-40A

44961 DRC-40A DRC-40A 4711232760209 Mean Well battery charger series DRC-40. Switching power supplies in a DIN rail housing with 40W, an LED indicator for power on, a universal input, a battery low protection, a power fail signal, a battery low signal and screw terminals (touch guard). These devices have a UPS function (battery charger) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a battery polarity protection (by fuse) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DRC-40A and DRC-40B. single output output: 40,02W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 300g

Specifications

manufacturer
Manufacturer's name DRC-40A
GTIN 4711232760209
Output voltage [V] 13,8
Phase 2 phase
Efficiency [%] 86
Output current range [A] 1,9 (1)
Output voltage tolerance: [%] 1
Output power [W] 40,02
Output voltage adjustment [V] 12...15
Ripple [mVp-p] 120
Data Sheet

Unit price

23,99 €

Volume discounts

Quantity Unit price
50 + 22,39 €

Stock: 208
Next incoming goods:
CW 51/2025
210 units

Further delivery:
CW 12/2026
