EPS-45S-5

Mean Well power supply series EPS-45S

Switching power supplies in a compact housing (3"x2", open frame) with 45W, a universal input and a low no-load power. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: EPS-45S-3.3, EPS-45S-5, EPS-45S-7.5, EPS-45S-12, EPS-45S-15, EPS-45S-24 and EPS-45S-48.

  • single output
  • output: 26,4 to 45,6W
  • input voltage: 80 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 60A
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C
  • weight: 110g

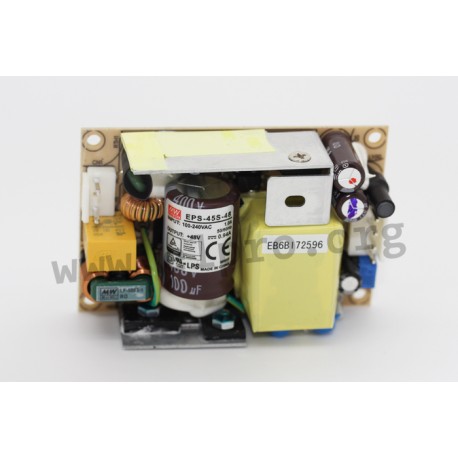

Mean Well EPS-45S series

EPS-45S-5

108313 EPS-45S-5 EPS-45S-5 4711287424545 Mean Well power supply series EPS-45S. Switching power supplies in a compact housing (3"x2", open frame) with 45W, a universal input and a low no-load power. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: EPS-45S-3.3, EPS-45S-5, EPS-45S-7.5, EPS-45S-12, EPS-45S-15, EPS-45S-24 and EPS-45S-48. single output output: 26,4 to 45,6W input voltage: 80 to 264V AC (47 to 63Hz) maximal input inrush current: 60A overload protection: 115 to 150% withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C weight: 110g

Specifications

manufacturer
Manufacturer's name EPS-45S-5
GTIN 4711287424545
Output voltage [V] 5
Efficiency [%] 83
Output current range [A] 0...8
Output voltage tolerance: [%] 2
Output power [W] 40
Ripple [mVp-p] 80
Data Sheet

Unit price

11,19 €

Volume discounts

Quantity Unit price
50 + 10,49 €

Stock: 20
Further delivery:
CW 05/2026
