GEM18I48-P1J

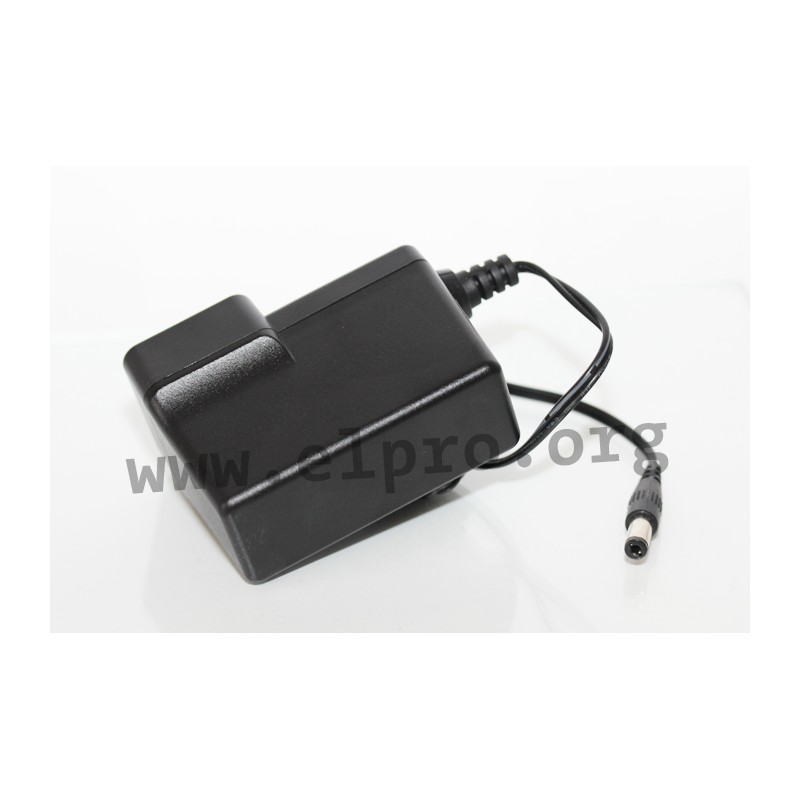

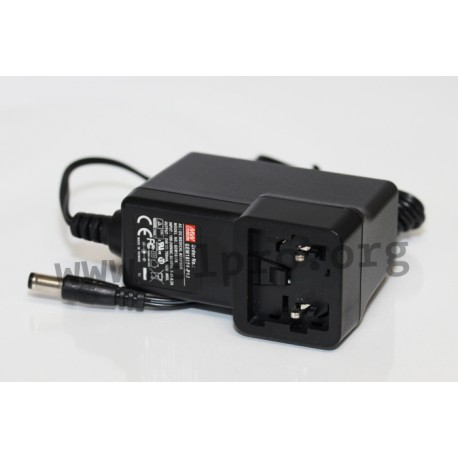

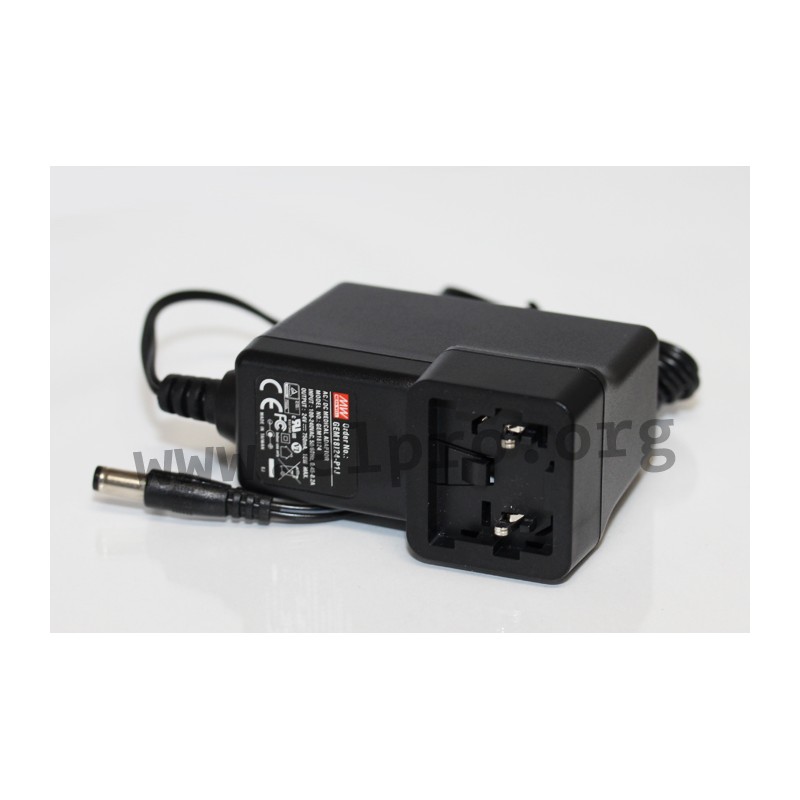

Mean Well plug-in power supply series GEM18

Plug-in switching power supplies in a plastic housing with 18W, a universal input, insulation class II, energy efficiency Level VI and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have interchangeable AC plugs and comply with EN60601-1, EN55011 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: GEM18I05-P1J, GEM18I09-P1J, GEM18I12-P1J, GEM18I15-P1J, GEM18I24-P1J and GEM18I48-P1J.

  • single output
  • output: 15 to 18W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • no-load power: <0,075W
  • leakage current: <100µA
  • output plug: 2,1x5,5mm coaxial
  • operating temperature: -20 to +50°C
  • weight: 140g

Matching input plugs

GEM18I48-P1J

104878 GEM18I48-P1J GEM18I48-P1J 4711287473581 Mean Well plug-in power supply series GEM18. Plug-in switching power&nbsp;supplies in a plastic&nbsp;housing with 18W, a universal input, insulation class II, energy efficiency Level VI and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have&nbsp;interchangeable AC plugs and comply with&nbsp;EN60601-1, EN55011 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;GEM18I05-P1J, GEM18I09-P1J, GEM18I12-P1J, GEM18I15-P1J, GEM18I24-P1J and GEM18I48-P1J. single output output: 15 to 18W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A no-load power: &lt;0,075W leakage current: &lt;100&micro;A output plug: 2,1x5,5mm&nbsp;coaxial operating temperature: -20 to +50&deg;C weight: 140g Matching input plugs

Specifications

manufacturer
Manufacturer's name GEM18I48-P1J
GTIN 4711287473581
Output voltage [V] 48
Efficiency [%] 87
Output current [A] 0...0,38
Output voltage tolerance: [%] 2
Output power [W] 18
Ripple [mVp-p] 80
Data Sheet

Unit price

16,19 €

Volume discounts

Quantity Unit price
50 + 15,09 €

Stock: 23
Further delivery:
CW 41/2024
