GS18E 12V 1,5A

Mean Well plug-in power supply series GS18E

Plug-in switching power supplies in a plastic housing with 18W, a universal input, insulation class II, energy efficiency Level V, an LED indicator for power on and a low no-load power (<0,3W). These devices are protected against overload, overvoltage as well as short circuit and comply with EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GS18E05-P1J and GS18E12-P1J.

  • single output
  • output: 15 to 18W
  • input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <0,25mA
  • overload protection: 110 to 150%
  • operating temperature: 0 to +50°C

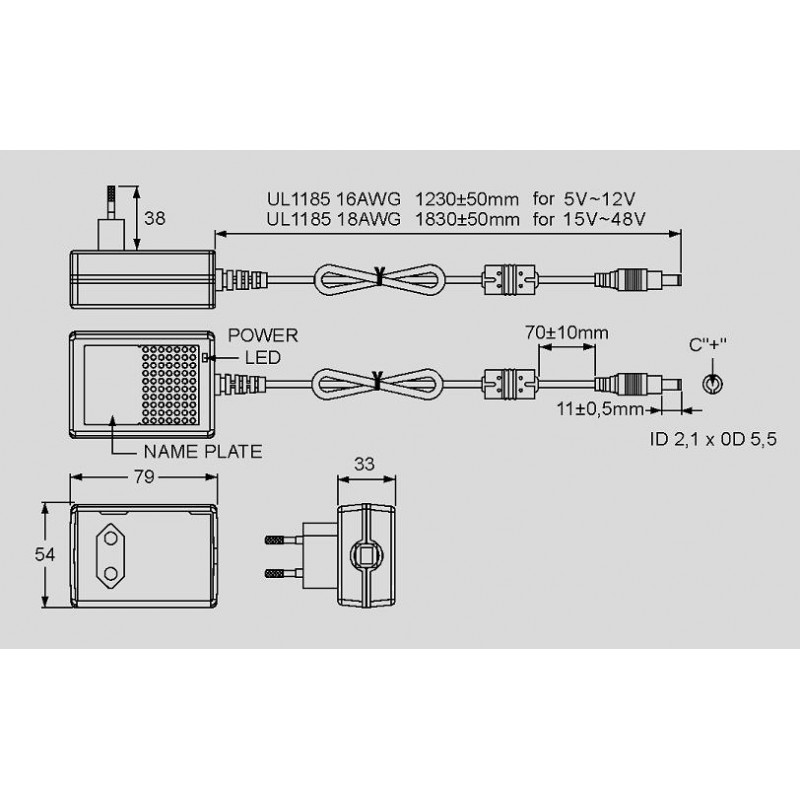

  • dimensions: 79x54x33mm
  • weight: 210g

GS18E 12V 1,5A

29336 GS18E 12V 1,5A GS18E12-P1J GS18E12-P1J Mean Well plug-in power supply series GS18E. Plug-in switching power supplies in a plastic housing with 18W, a universal input, insulation class II, energy efficiency Level V, an LED indicator for power on and a low no-load power (&lt;0,3W). These devices are protected against overload, overvoltage as well as short circuit and comply with EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GS18E05-P1J and GS18E12-P1J. single output output: 15 to 18W input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC maximal input inrush current: 45A leakage current: &lt;0,25mA overload protection: 110 to 150% operating temperature: 0 to +50°C dimensions: 79x54x33mm weight: 210g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name GS18E12-P1J
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 85
Output current range [A] 0...1,5
Output voltage tolerance: [%] 3
Output power [W] 18
Ripple [mVp-p] 80
Data Sheet

Unit price

11,49 €

Stock: 2
