GS280A24-C4P

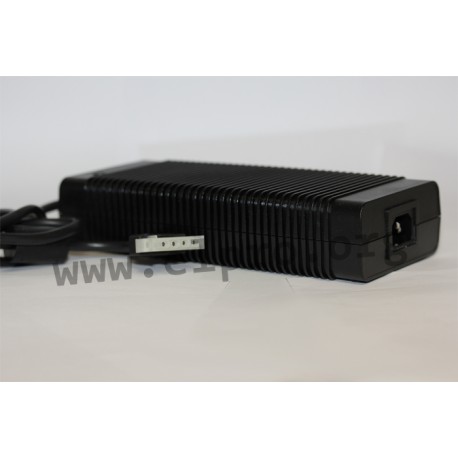

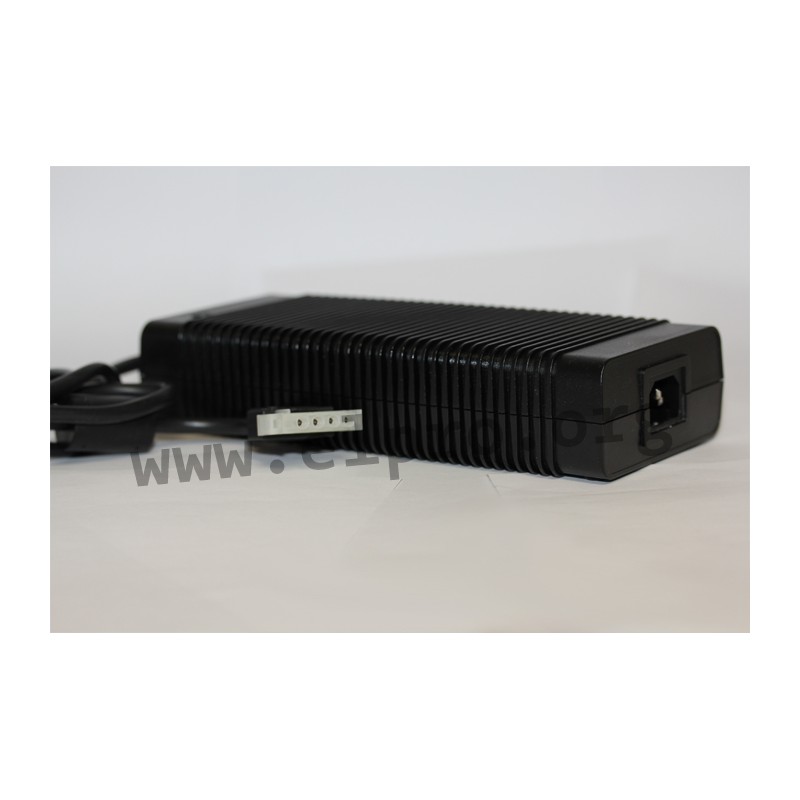

Mean Well desktop power supply series GS280A

Desktop switching power supplies in a plastic housing with 280W, insulation class I, a universal input, an LED indicator for power on, energy efficiency Level V and a low no-load power (<0,5W). These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the type GS280A24-C4P of this Mean Well series.

  • single output
  • output: 280,08W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 120A
  • leakage current: <1,5mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +60°C
  • dimensions: 220x95x46mm
  • weight: 1250g

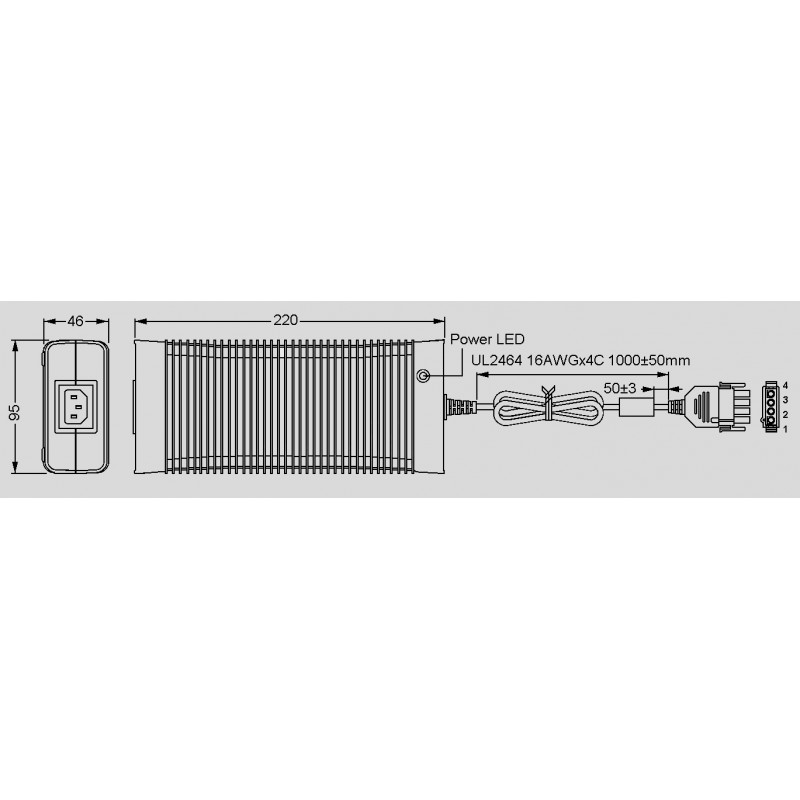

dimensions

GS280A24-C4P

39271 GS280A24-C4P GS280A24-C4P Mean Well desktop power supply series GS280A. Desktop switching power supplies in a plastic housing with 280W, insulation class I, a universal input, an LED indicator for power on, energy efficiency Level V and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the type GS280A24-C4P of this Mean Well series. single output output: 280,08W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 120A leakage current: &lt;1,5mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +60°C dimensions: 220x95x46mm weight: 1250g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name GS280A24-C4P
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 93
Output current range [A] 0...11,67
Output voltage tolerance: [%] 3
Output power [W] 280,08
Ripple [mVp-p] 280
Data Sheet

Unit price

77,99 €

Stock: 3
