GS90A12-P1M

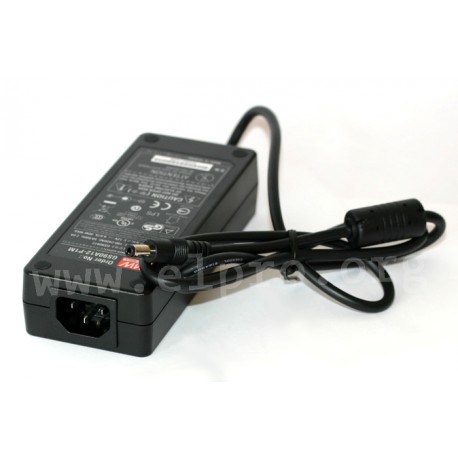

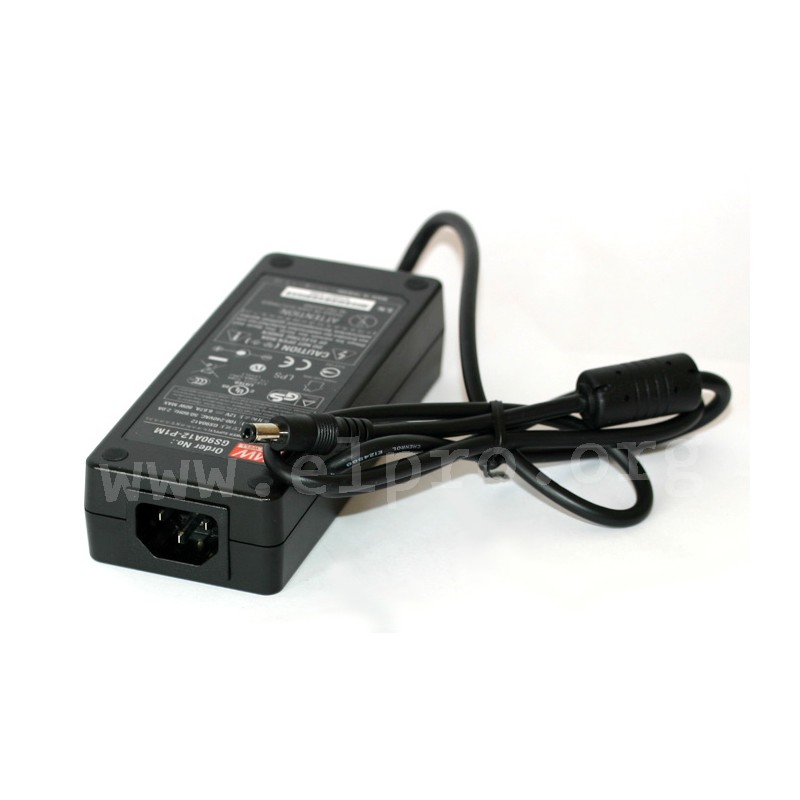

Mean Well desktop power supply series GS90A

Desktop switching power supplies in a plastic housing with 90W, a universal input, an LED indicator for power on, energy efficiency Level V, insulation class I and a low no-load power (<0,5W). These devices have a built-in active PFC function, are protected against overload, overtemperature, overvoltage as well as short circuit and comply with EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GS90A12-P1M and GS90A24-P1M.

  • single output
  • output: 80 to 90W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • overload protection: 110 to 150%
  • operating temperature: -30 to +50°C

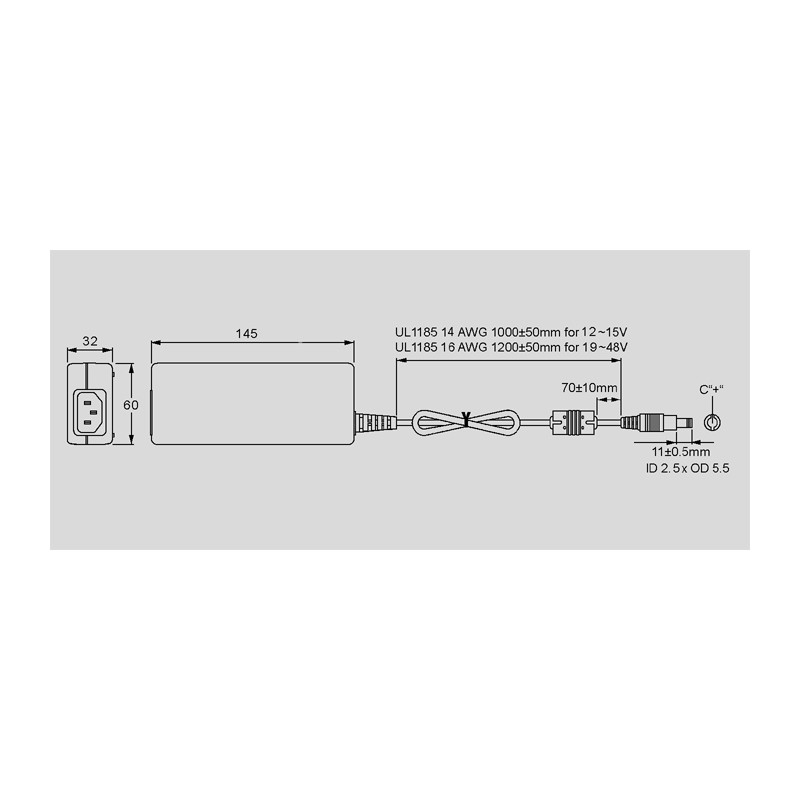

  • dimensions: 145x60x32mm
  • weight: 450g
Meanwell GS90A series

GS90A12-P1M

32401 GS90A12-P1M GS90A12-P1M Mean Well desktop power supply series GS90A. Desktop switching power supplies in a plastic housing with 90W, a universal input, an LED indicator for power on, energy efficiency Level V, insulation class I and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function, are protected against overload, overtemperature, overvoltage as well as short circuit and comply with EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GS90A12-P1M and GS90A24-P1M. single output output: 80 to 90W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;1mA overload protection: 110 to 150% operating temperature: -30 to +50°C dimensions: 145x60x32mm weight: 450g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name GS90A12-P1M
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 87
Output current range [A] 0...6,67
Output voltage tolerance: [%] 5
Output power [W] 80
Ripple [mV] 80
Data Sheet

Unit price

23,90 €

Stock: 9
