GSM90B48-P1M

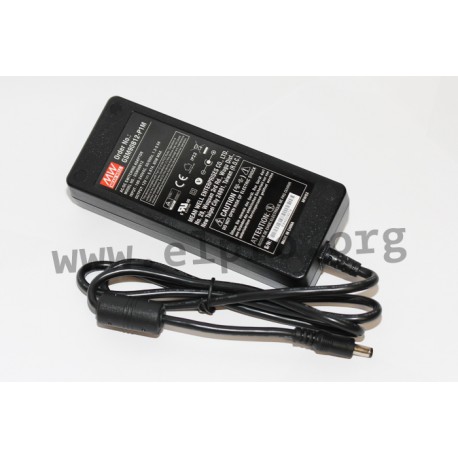

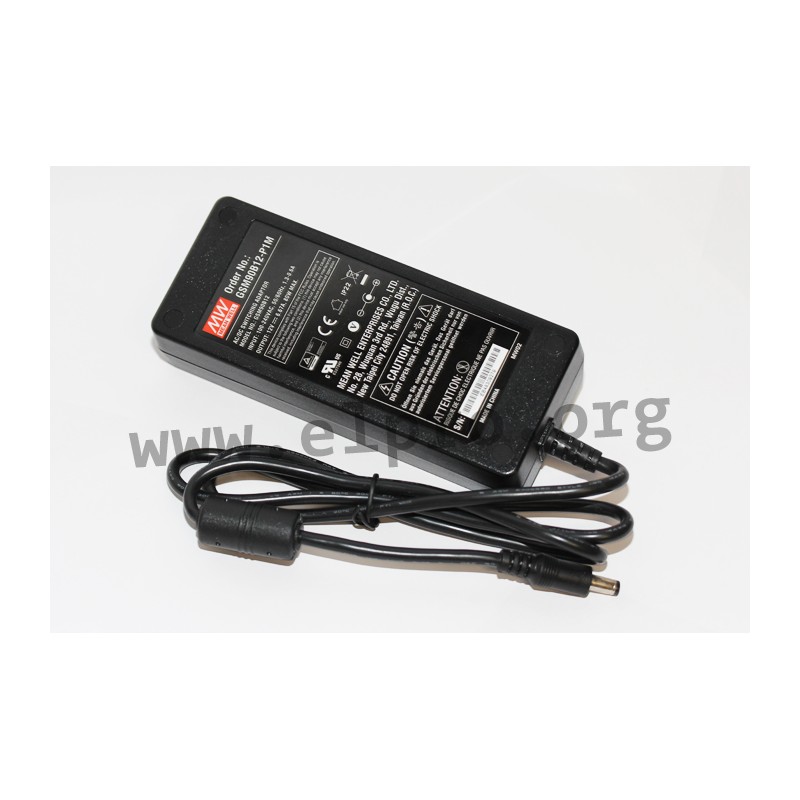

Mean Well desktop power supply series GSM90B

Desktop switching power supplies with 90W, insulation class II, a universal input, energy efficiency Level VI, a low no-load power and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 90.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM90B12-P1M, GSM90B15-P1M, GSM90B19-P1M, GSM90B24-P1M and GSM90B48-P1M.

  • single output
  • output: 80 to 90W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 60A
  • input plug: C8 (IEC320-C8)

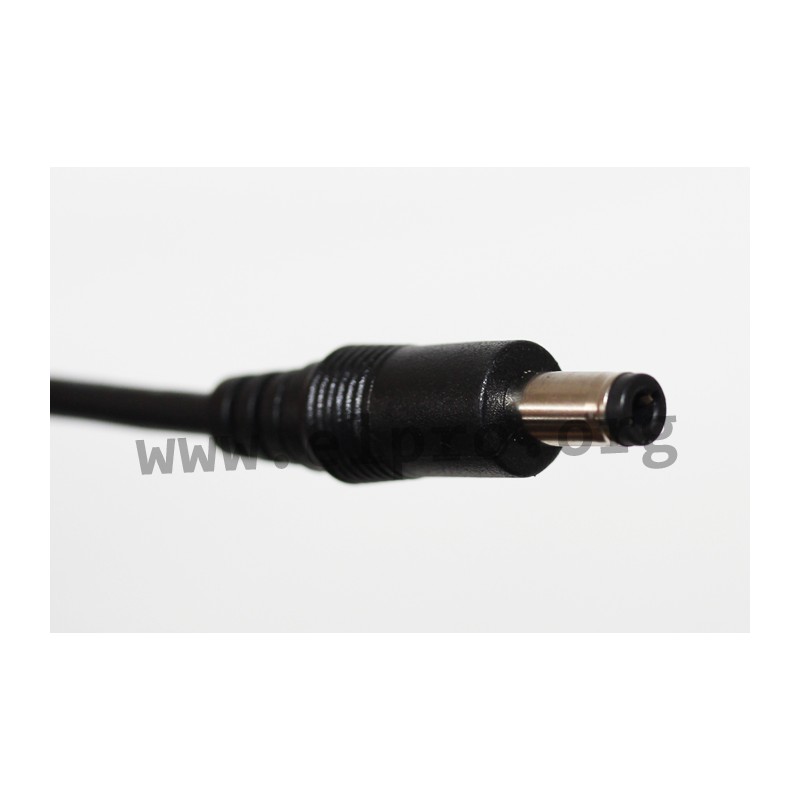

  • output plug: 5,5x2,5mm
  • operating temperature: -30 to +70°C
  • weight: 450g

GSM90B48-P1M

44242 GSM90B48-P1M GSM90B48-P1M 4711287431215 Mean Well desktop power supply series GSM90B. Desktop switching power supplies with 90W, insulation class II, a universal input, energy efficiency Level VI, a low no-load power and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 90.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM90B12-P1M, GSM90B15-P1M, GSM90B19-P1M, GSM90B24-P1M and GSM90B48-P1M. single output output: 80 to 90W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 60A input plug: C8 (IEC320-C8) output plug: 5,5x2,5mm operating temperature: -30 to +70°C weight: 450g

Specifications

manufacturer
Manufacturer's name GSM90B48-P1M
GTIN 4711287431215
Output voltage [V] 48
Phase 2 phase
Ripple [Vp-p] 240
Efficiency [%] 91
Output current range [A] 0...1,87
Output voltage tolerance: [%] 2,5
Output power [W] 90
Data Sheet

Unit price

29,79 €

Volume discounts

Quantity Unit price
50 + 27,79 €

Stock: 19
Further delivery:
CW 35/2024
