GST160A15-R7B

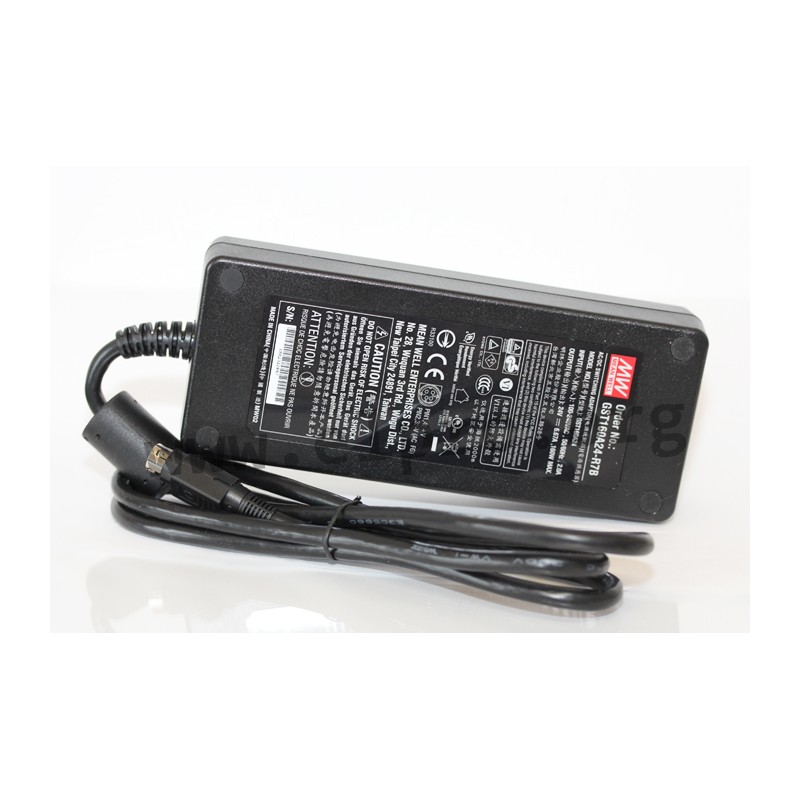

Mean Well desktop power supply series GST160A

Desktop switching power supplies in a plastic housing with 160W, a universal input, a low no-load power (<0,15W), insulation class I and energy efficiency Level VI. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have an LED indicator for power on and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST160A12-R7B, GST160A15-R7B, GST160A20-R7B, GST160A24-R7B, GST160A36-R7B and GST160A48-R7B.

  • single output
  • output: 138 to 160W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 120A
  • no-load power: <0,15W
  • input plug: C14 (EN60320-1)
  • output plug: R7B 4-pole
  • operating temperature: -30 to +70°C
  • weight: 660g

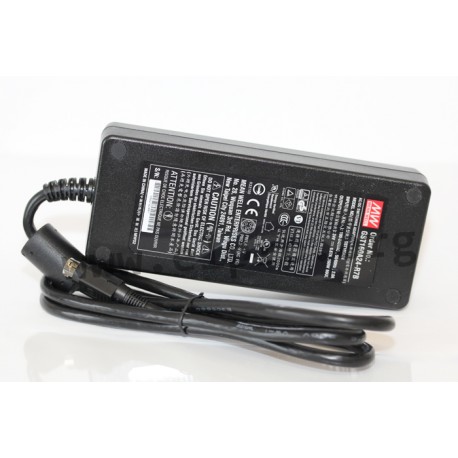

Mean Well GST160A series

GST160A15-R7B

104435 GST160A15-R7B GST160A15-R7B 4711287429311 Mean Well desktop power supply series GST160A. Desktop switching power supplies in a&nbsp;plastic housing with 160W, a universal input, a low no-load power (&lt;0,15W), insulation class I and energy&nbsp;efficiency Level VI. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have an LED&nbsp;indicator for power on and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;GST160A12-R7B,&nbsp;GST160A15-R7B,&nbsp;GST160A20-R7B,&nbsp;GST160A24-R7B,&nbsp;GST160A36-R7B and&nbsp;GST160A48-R7B. single output output: 138 to 160W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 120A no-load power: &lt;0,15W input plug: C14 (EN60320-1) output plug: R7B 4-pole operating temperature: -30 to +70&deg;C weight: 660g

Specifications

manufacturer
Manufacturer's name GST160A15-R7B
GTIN 4711287429311
Output voltage [V] 15
Efficiency [%] 91
Output current range [A] 0...9,6
Output voltage tolerance: [%] 5
Output power [W] 144
Ripple [mVp-p] 100
Data Sheet
