GST36E05-P1J

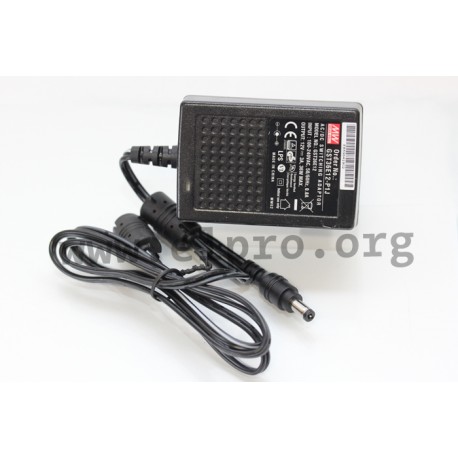

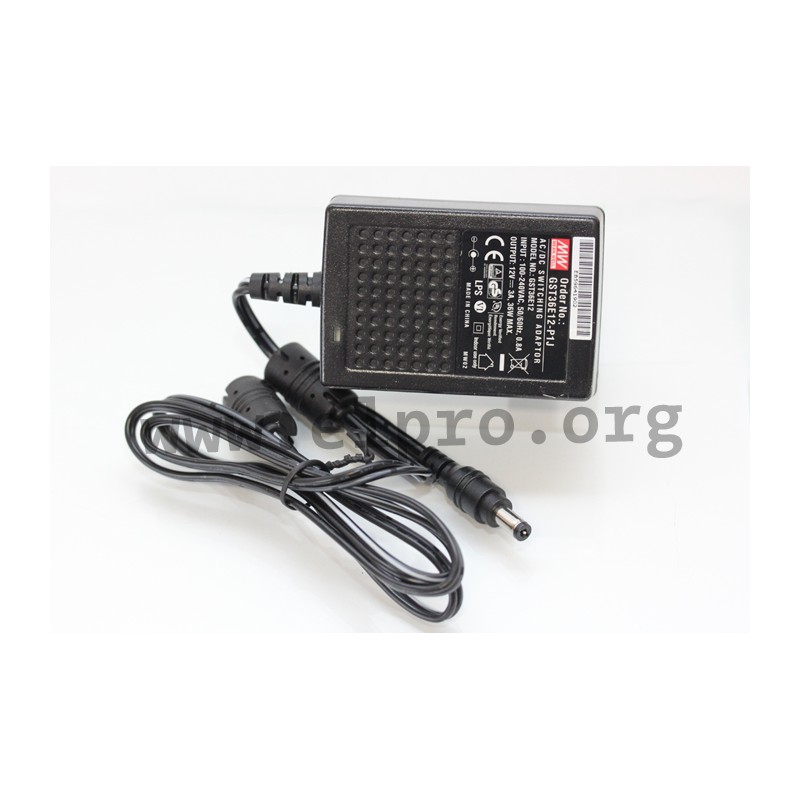

Mean Well plug-in power supply series GST36E

Plug-in switching power supplies in a plastic housing with 36W, a europlug, an LED indicator for power on, a universal input, insulation class II, a low no-load power and energy efficiency Level VI. These devices are very reliable, are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST36E05-P1J, GST36E09-P1J, GST36E12-P1J, GST36E24-P1J and GST36E48-P1J.

  • single output
  • output: 21,5 to 36W
  • input voltage: 85 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • no-load power: <0,075W
  • cable length: 1m
  • input plug: Euro
  • output plug: 2,1x5,5mm coaxial
  • operating temperature: -30 to +70°C
  • weight: 209g
Mean Well GST36E series

GST36E05-P1J

104467 GST36E05-P1J GST36E05-P1J 4711287430416 Mean Well plug-in power supply series GST36E. Plug-in switching power supplies in a plastic housing with 36W, a europlug, an LED indicator for power on, a universal input,&nbsp;insulation class II, a low no-load power and energy efficiency Level VI. These devices are very reliable, are protected against overload (auto recovery), overvoltage as well as short circuit and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;GST36E05-P1J, GST36E09-P1J, GST36E12-P1J, GST36E24-P1J and GST36E48-P1J. single output output: 21,5 to 36W input voltage: 85 to 264V AC (47 to 63Hz) maximal input inrush current: 70A no-load power: &lt;0,075W cable length: 1m input plug:&nbsp;Euro output plug: 2,1x5,5mm&nbsp;coaxial operating temperature: -30 to +70&deg;C weight: 209g

Specifications

manufacturer
Manufacturer's name GST36E05-P1J
GTIN 4711287430416
Output voltage [V] 5
Efficiency [%] 82
Output current range [A] 0...4,3
Output voltage tolerance: [%] 5
Output power [W] 21,5
Ripple [mVp-p] 90
Data Sheet
