> Power supplies>Power supplies>Desktop switching power supplies>Mean Well external switching power supplies, 60W, energy efficiency Level VI, GST60A series>GST60A09-P1J

Manufacturers

GST60A09-P1J

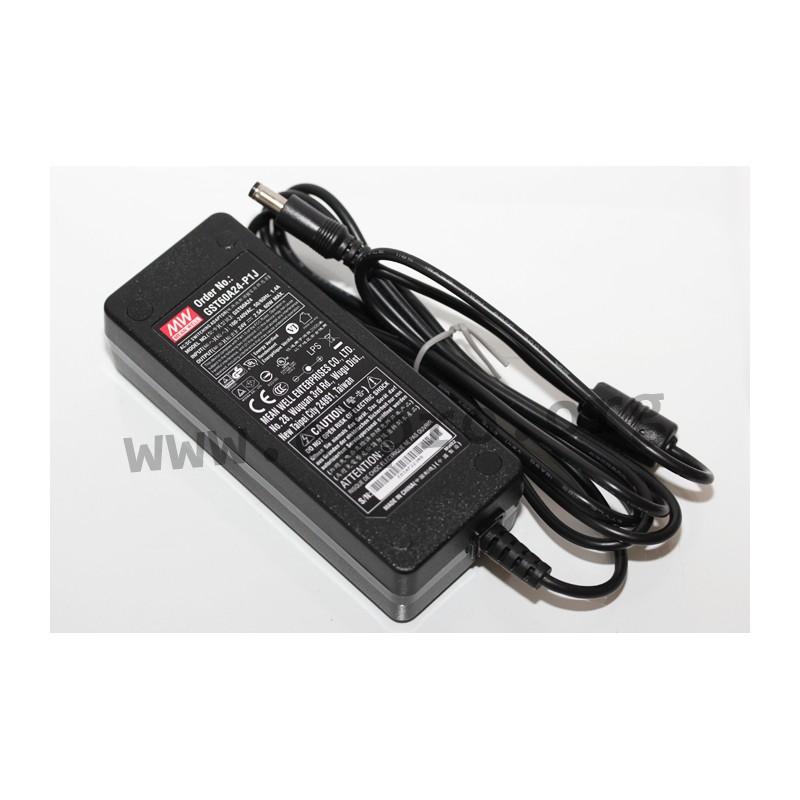

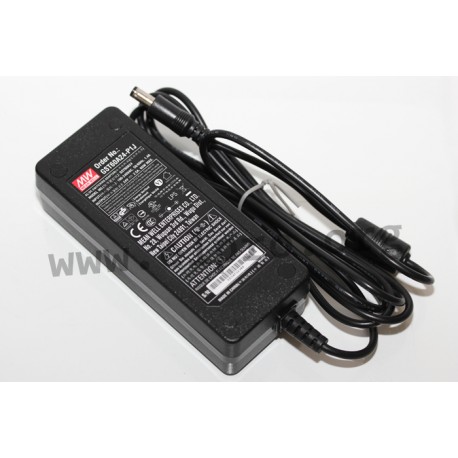

Mean Well desktop power supply series GST60A

Desktop switching power supplies in a plastic housing with 60W, a universal input, insulation class I, energy efficiency Level VI, an LED indicator for power on and a low no-load power. These devices are protected against overload, overtemperature, short circuit as well as overvoltage and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: GST60A05-P1J, GST60A07-P1J, GST60A09-P1J, GST60A12-P1J, GST60A15-P1J, GST60A18-P1J, GST60A24-P1J and GST60A48-P1J.

  • single output
  • output: 30 to 60W
  • input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC
  • maximal input inrush current: 65A
  • no-load power: <0,075W
  • input plug: C14 (EN60320-1)

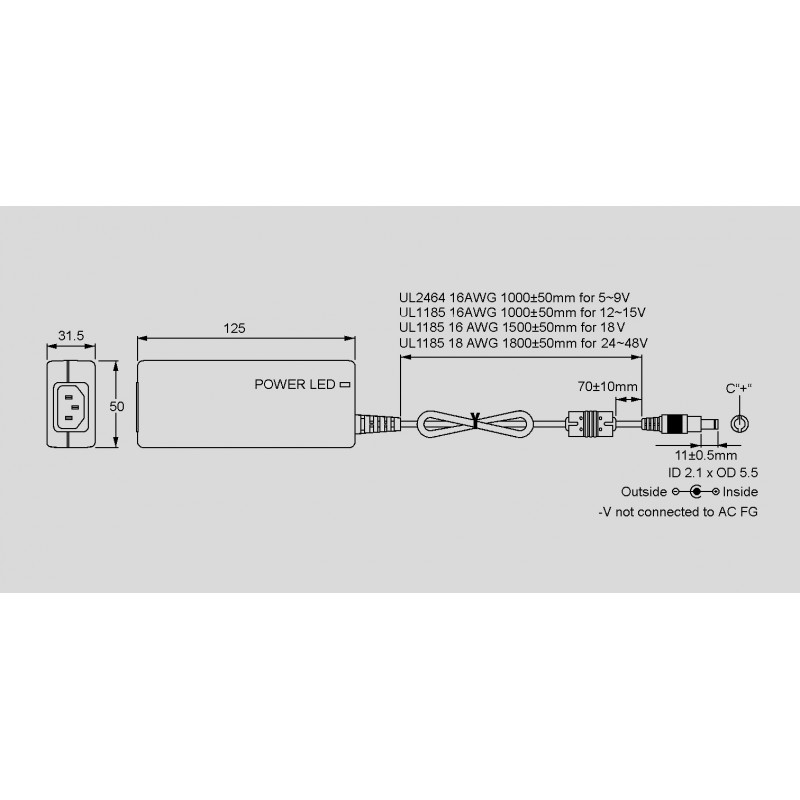

  • output plug: 2,1x5,5mm
  • operating temperature: -30 to +70°C
  • weight: 305g
Mean Well GST60A series

GST60A09-P1J

104418 GST60A09-P1J GST60A09-P1J 4711287429144 Mean&nbsp;Well desktop power supply series&nbsp;GST60A. Desktop switching power supplies in a plastic housing with 60W, a universal input, insulation class I, energy efficiency Level VI, an LED indicator for power on and a low no-load power. These devices are protected against overload,&nbsp;overtemperature, short circuit as well as overvoltage and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;GST60A05-P1J, GST60A07-P1J, GST60A09-P1J, GST60A12-P1J, GST60A15-P1J, GST60A18-P1J, GST60A24-P1J and GST60A48-P1J. single output output: 30 to 60W input voltage:&nbsp;90 to 264V AC (47 to 63Hz), 135 to 370V DC maximal input inrush current: 65A no-load power: &lt;0,075W input plug: C14 (EN60320-1) output plug: 2,1x5,5mm operating temperature: -30 to +70&deg;C weight: 305g

Specifications

manufacturer
Manufacturer's name GST60A09-P1J
GTIN 4711287429144
Output voltage [V] 9
Efficiency [%] 89
Output current range [A] 0...0,6
Output voltage tolerance: [%] 5
Output power [W] 54
Ripple [mVp-p] 150
Data Sheet

Unit price

14,69 €

Volume discounts

Quantity Unit price
50 + 13,69 €

Stock: 13
Next incoming goods:
CW 03/2026
50 units

Further delivery:
CW 12/2026
