GSV60I12-P1J

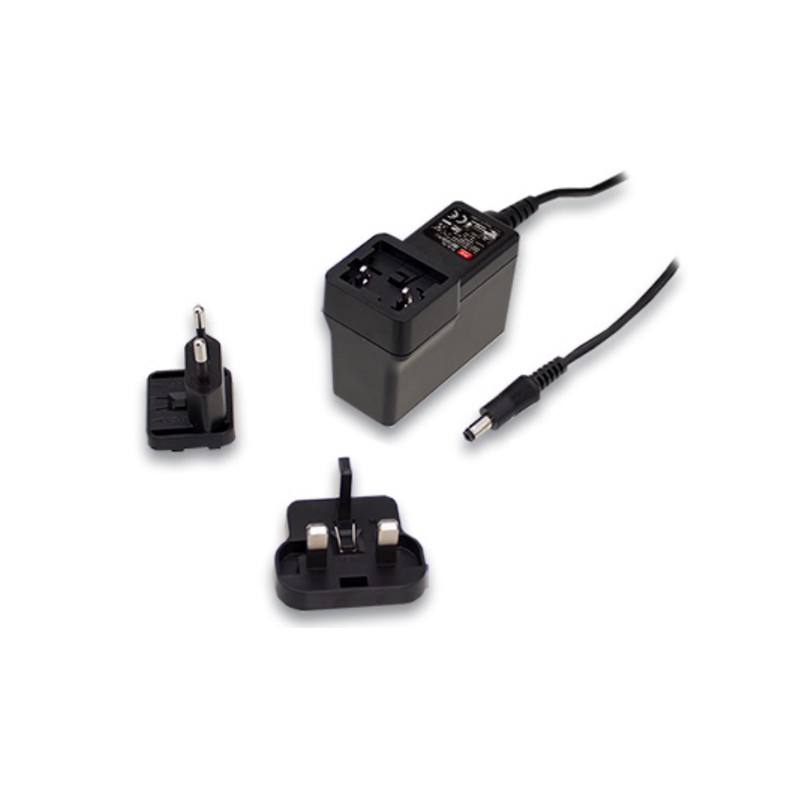

Mean Well LED driver series GSV60I

LED plug-in switching power supplies with 60W, protection class II, a universal input, a constant voltage and a low no-load power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have interchangeable input plugs and comply with EN61347-1 as well as EN61347-2-13. We offer the following types of this Mean Well series: GSV60I12-P1J, GSV60I24-P1J and GSV60I48-P1J.

  • single output
  • output: 50 to 60W
  • input voltage: 180 to 264V AC (47 to 63Hz), 255 to 373V DC
  • maximal input inrush current: 20A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +40°C
  • dimensions: 75,5x39,1x56,2mm
  • weight: 200g

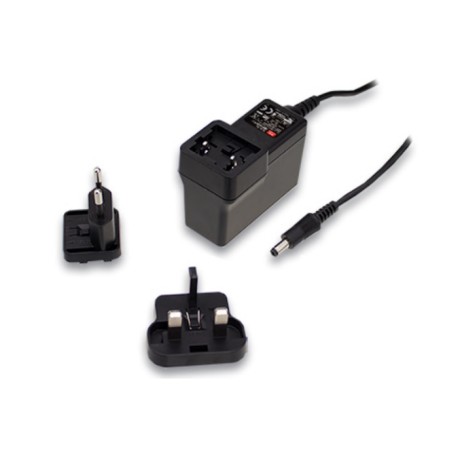

GSV60I12-P1J, Mean Well LED plug-in drivers, 60W, constant voltage, interchangeable input plugs, GSV60I series

GSV60I12-P1J

244882 GSV60I12-P1J GSV60I12-P1J Mean Well LED driver series GSV60I. LED plug-in switching power supplies with 60W, protection class II, a universal input, a constant voltage and a low no-load power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have interchangeable input plugs and comply with EN61347-1 as well as EN61347-2-13. We offer the following types of this Mean Well series: GSV60I12-P1J, GSV60I24-P1J and GSV60I48-P1J. single output output: 50 to 60W input voltage: 180 to 264V AC (47 to 63Hz), 255 to 373V DC maximal input inrush current: 20A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +40°C dimensions: 75,5x39,1x56,2mm weight: 200g

Specifications

manufacturer
Manufacturer's name GSV60I12-P1J
Output voltage [V] 12
Efficiency [%] 85
Output current [A] 4,16
Output voltage tolerance: [%] 2
Output power [W] 50
Ripple [mVp-p] 3000
Data Sheet

Unit price

18,89 €

Stock: 0
Further delivery:
CW 36/2024
