Mean Well LED driver series GSV60I

LED plug-in switching power supplies with 60W, protection class II, a universal input, a constant voltage and a low no-load power. These devices have a built-in active PFC function and are protected against overl...

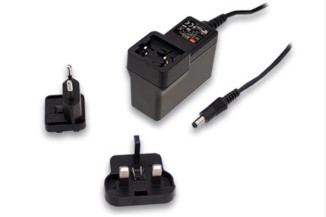

Mean Well LED driver series GSV60I

LED plug-in switching power supplies with 60W, protection class II, a universal input, a constant voltage and a low no-load power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have interchangeable input plugs and comply with EN61347-1 as well as EN61347-2-13. We offer the following types of this Mean Well series: GSV60I12-P1J, GSV60I24-P1J and GSV60I48-P1J.

  • single output
  • output: 50 to 60W
  • input voltage: 180 to 264V AC (47 to 63Hz), 255 to 373V DC
  • maximal input inrush current: 20A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +40°C
  • dimensions: 75,5x39,1x56,2mm
  • weight: 200g
