HBG-240-48A

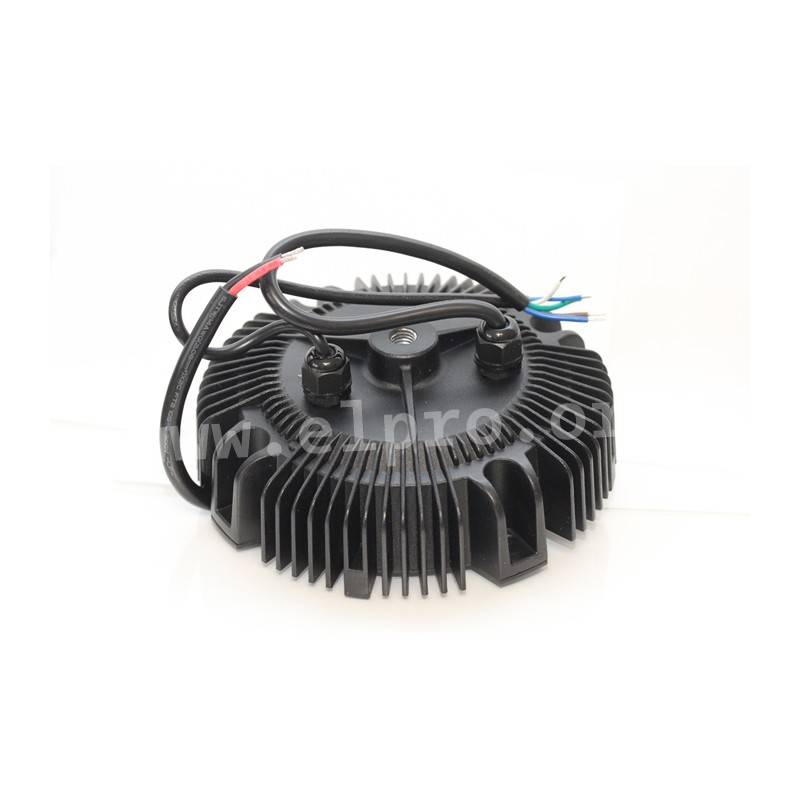

Mean Well LED driver series HBG-240

LED drivers in a metal housing (IP65, circular shape) with a constant power, a built-in potentiometer for adjusting the current limitation, 240W and a constant current. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with EN55015, EN61000-3-3, EN61000-3-2 class C, EN61547, EN61347-2-13 as well as EN61347-1 and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-240-48A and HBG-240-60A.

  • single output
  • output: 240W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +80°C

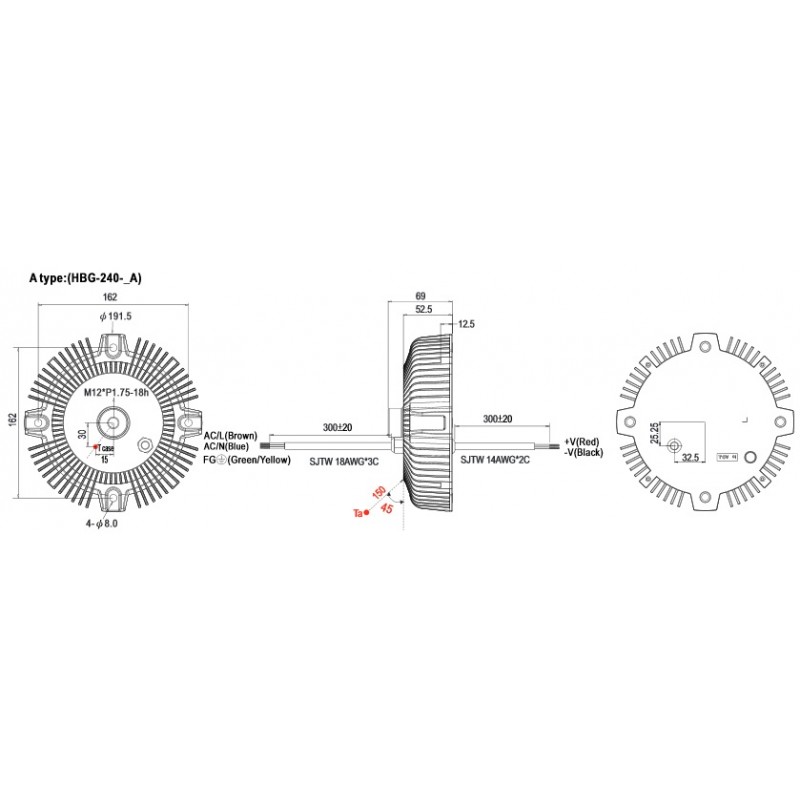

  • dimensions: Ø191,5x69mm
  • weight: 2100g

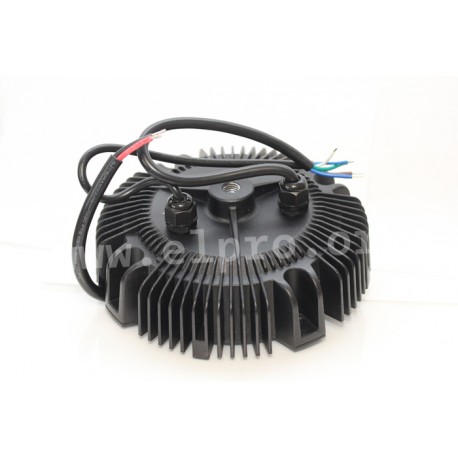

series HBG-240 by Meanwell

HBG-240-48A

42673 HBG-240-48A HBG-240-48A 4711287447933 Mean Well LED driver series HBG-240. LED drivers in a metal housing (IP65, circular shape) with a constant power, a built-in potentiometer for adjusting the current limitation, 240W and a constant current. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and are suitable for LED lighting applications. They comply with EN55015, EN61000-3-3, EN61000-3-2 class C, EN61547, EN61347-2-13 as well as EN61347-1 and have a built-in active PFC function. We offer the following types of this Mean Well series: HBG-240-48A and HBG-240-60A. single output output: 240W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +80°C dimensions: Ø191,5x69mm weight: 2100g

Specifications

manufacturer
Manufacturer's name HBG-240-48A
GTIN 4711287447933
Output voltage [V] 48
Phase 2 phase
Output current adjustment [A] 3...5
Efficiency [%] 93
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 250
Data Sheet

Unit price

67,89 €

Volume discounts

Quantity Unit price
50 + 65,59 €

Stock: 11
Next incoming goods:
CW 28/2024
104 units

Further delivery:
CW 34/2024
