HEP-240-54A

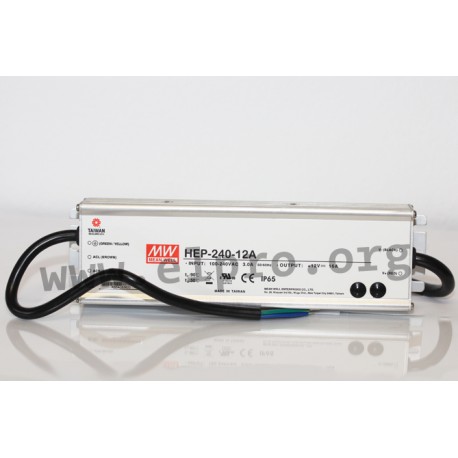

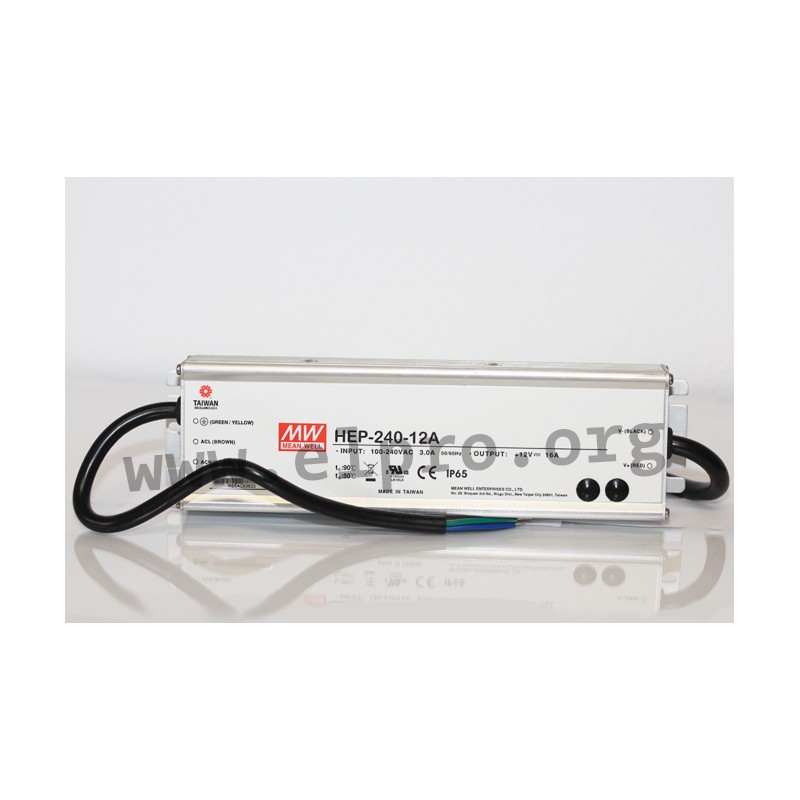

Mean Well power supply series HEP-240

Switching power supplies in an enclosed aluminium housing with 240W, screw terminals, a universal input and a surge immunity level of 6kV. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series: HEP-240-12A, HEP-240-15A, HEP-240-24A, HEP-240-36A, HEP-240-48A and HEP-240-54A.

  • single output
  • output: 192 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • leakage current: <0,75mA
  • overcurrent protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -55 to +70°C
  • weight: 1300g

HEP-240-54A

104811 HEP-240-54A HEP-240-54A 4711287433295 Mean Well power supply series HEP-240. Switching power supplies in an enclosed aluminium housing with 240W, screw terminals, a universal input and a surge immunity level of 6kV. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with&nbsp;EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series:&nbsp;HEP-240-12A, HEP-240-15A, HEP-240-24A,&nbsp;HEP-240-36A,&nbsp;HEP-240-48A and HEP-240-54A. single output output: 192 to 241,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A leakage current: &lt;0,75mA overcurrent protection: 105 to 125% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -55 to +70&deg;C weight: 1300g

Specifications

manufacturer
Manufacturer's name HEP-240-54A
GTIN 4711287433295
Output voltage [V] 54
Efficiency [%] 93,5
Output current [A] 4,45
Output voltage tolerance: [%] 1
Output power [W] 240,3
Output voltage adjustment [V] 50...57
Ripple [mVp-p] 350
Data Sheet

Unit price

87,19 €

Volume discounts

Quantity Unit price
50 + 85,39 €

Stock: 4
Next incoming goods:
CW 48/2024
20 units


Further delivery:
CW 11/2025
