HLG-100H-42A

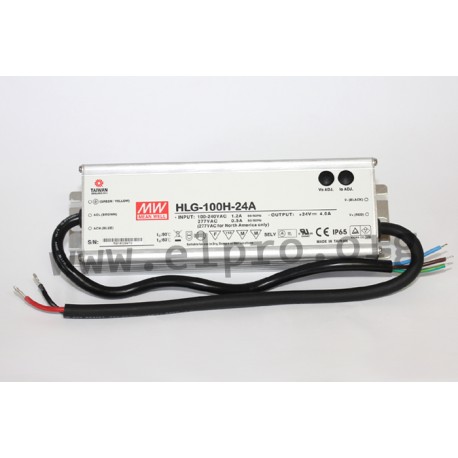

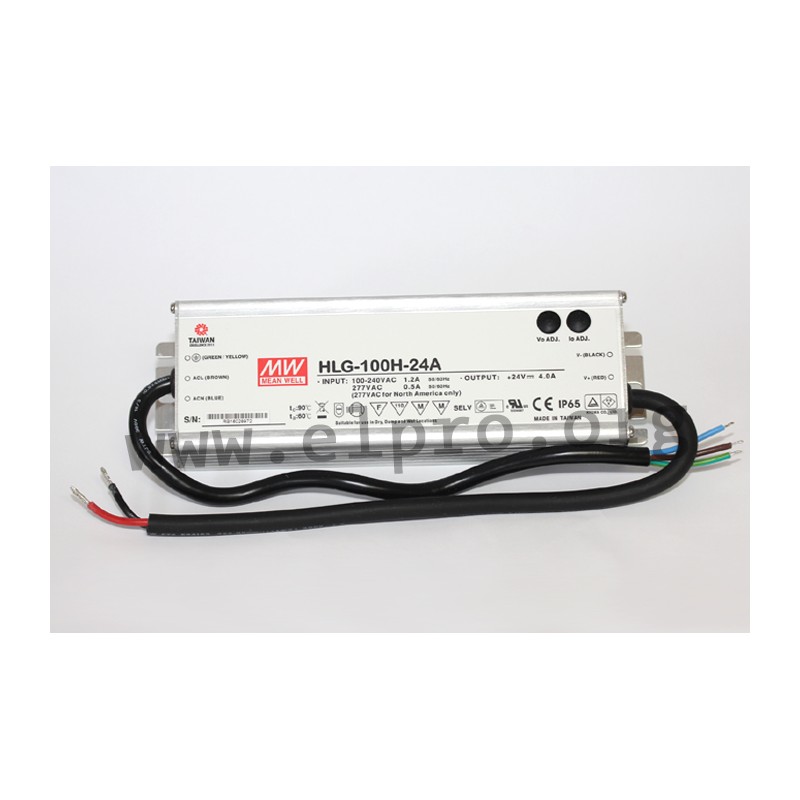

LED power supply HLG-100H by Meanwell

These switching power supplies are destined for indoor and outdoor LED and illumination applications (IP65). Output voltage and output current are adjustable with internal potentiometer. The devices are endued with universal input, built-in active PFC function and protection against short circuit, overvoltage and overload by current limiting (auto recovery). We are offering the following types by manufacturer Mean Well: HLG-100H-20A, HLG-100H-24A, HLG-100H-30A, HLG-100H-36A, HLG-100H-42A, HLG-100H-48A und HLG-100H-54A

• output 95.76 watt
• input voltage: up 127 to 431 volt DC, 90 to 305 volt AC (47 to 63Hz)
• maximal input inrush current: 60A / 230V AC
• I/P-O/P, withstand voltage: 3750 volt AC
• I/P-FG, withstand voltage: 2000 volt AC
• O/P-FG, withstand voltage: 1500 volt AC
• operating temperature: up -40 to +70 °C
• by Mean Well
• weight: 1.12kg

HLG-100H-42A

35583 HLG-100H-42A HLG-100H-42A LED power supply HLG-100H by Meanwell. These switching power supplies are destined for indoor and outdoor LED and illumination applications (IP65). Output voltage and output current are adjustable with internal potentiometer. The devices are endued with universal input, built-in active PFC function and protection against short circuit, overvoltage and overload by current limiting (auto recovery). We are offering the following types by manufacturer Mean Well: HLG-100H-20A, HLG-100H-24A, HLG-100H-30A, HLG-100H-36A, HLG-100H-42A, HLG-100H-48A und HLG-100H-54A• output 95.76 watt• input voltage: up 127 to 431 volt DC, 90 to 305 volt AC (47 to 63Hz)• maximal input inrush current: 60A / 230V AC• I/P-O/P, withstand voltage: 3750 volt AC• I/P-FG, withstand voltage: 2000 volt AC• O/P-FG, withstand voltage: 1500 volt AC• operating temperature: up -40 to +70 °C• by Mean Well• weight: 1.12kg

Data sheet

manufacturer
manufacturer's name HLG-100H-42A
output voltage [V] 42
phase 2 phase
output current adjustment [A] 1,4...2,28
efficiency [%] 93
output power [W] 95,76
output voltage tolerance: [%] 1
output voltage adjustment [V] 38...46
ripple [mV] 200

Download

Data Sheet

39,20 €

Volume discounts

20 pcs. / 34,70 €

stock: 16
