HLG-320H-36

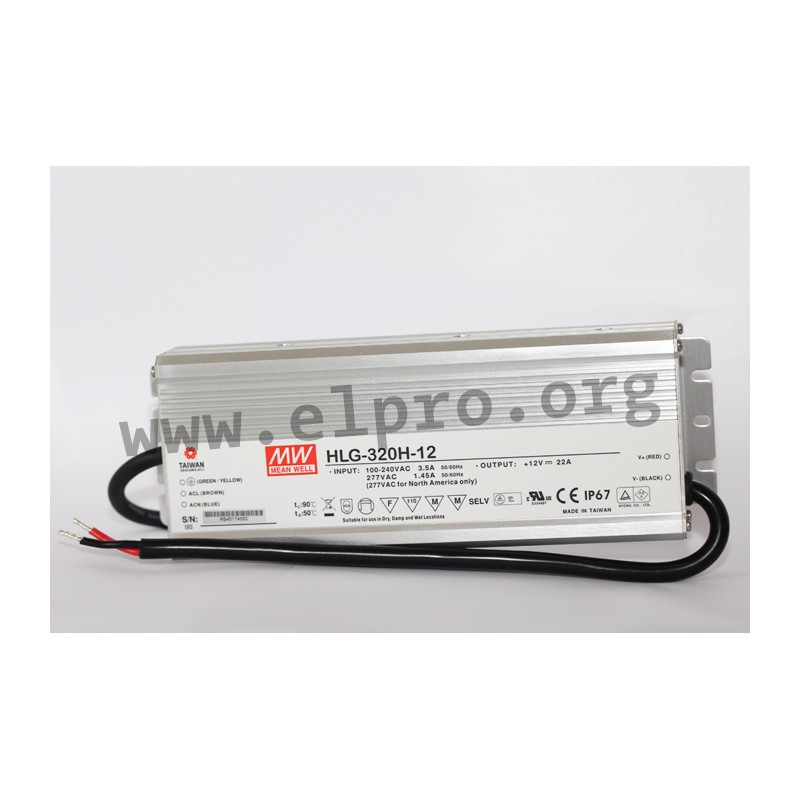

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP67) with a constant voltage, 320W and a constant current. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-2-13, EN61347-1, EN61000-3-3, EN55015, EN61547 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-12, HLG-320H-15, HLG-320H-20, HLG-320H-24, HLG-320H-30, HLG-320H-36, HLG-320H-42, HLG-320H-48 and HLG-320H-54.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

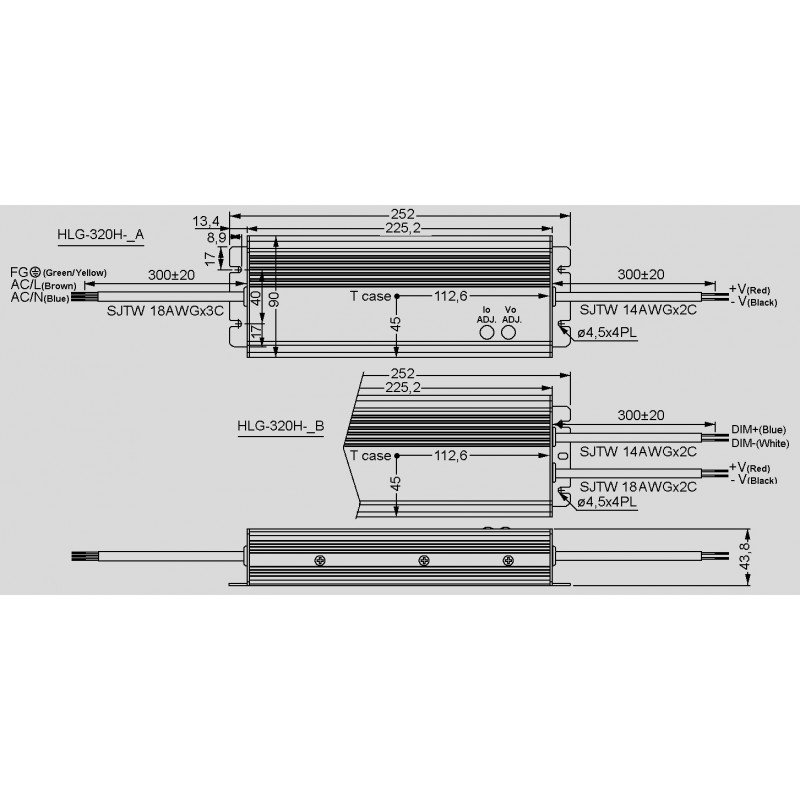

  • dimensions: 252x90x43,8mm
  • weight: 1880g

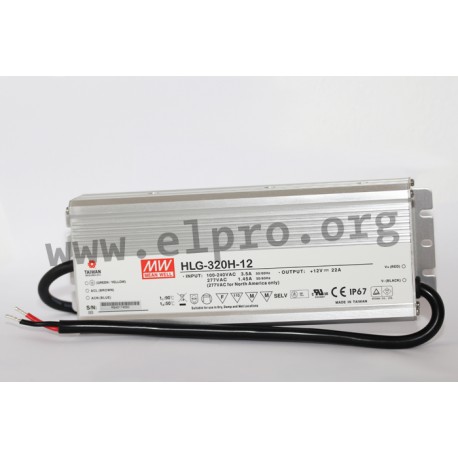

Mean Well HLG-320H series

HLG-320H-36

41272 HLG-320H-36 HLG-320H-36 4711287450865 Mean Well LED driver series HLG-320H. LED drivers in a metal housing (IP67) with a constant voltage, 320W and a constant current. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-2-13, EN61347-1, EN61000-3-3, EN55015, EN61547 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-12, HLG-320H-15, HLG-320H-20, HLG-320H-24, HLG-320H-30, HLG-320H-36, HLG-320H-42, HLG-320H-48 and HLG-320H-54. single output output: 264 to 321,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 252x90x43,8mm weight: 1880g

Specifications

manufacturer
Manufacturer's name HLG-320H-36
GTIN 4711287450865
Output voltage [V] 36
Phase 2 phase
Efficiency [%] 94,5
Output voltage tolerance: [%] 1
Output power [W] 320,4
Ripple [mVp-p] 250
Data Sheet

Unit price

78,79 €

Volume discounts

Quantity Unit price
50 + 76,19 €

Stock: 156
Further delivery:
CW 33/2024
