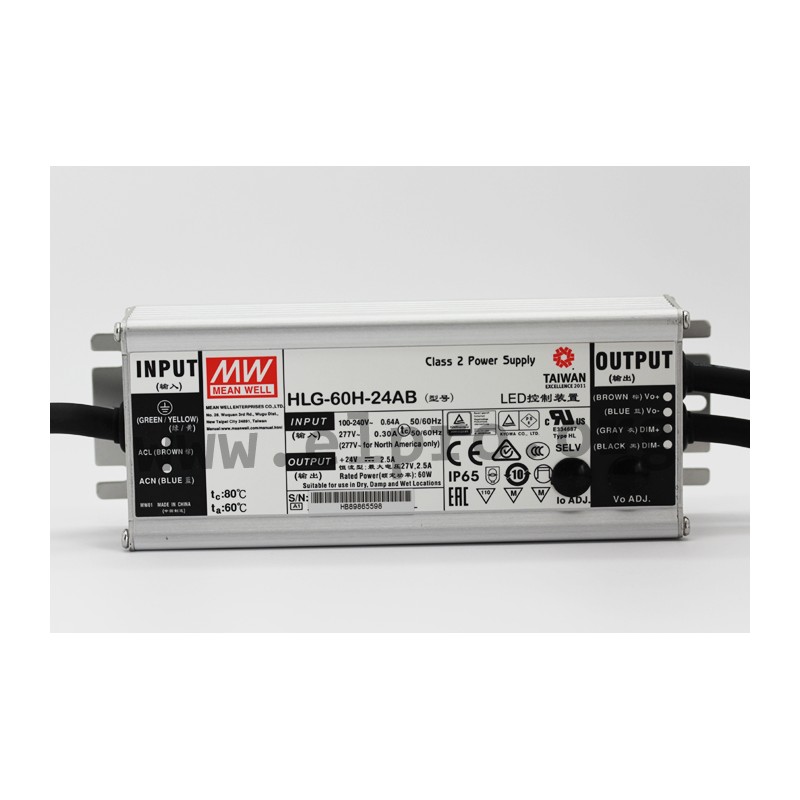

HLG-60H-24AB

Mean Well LED driver series HLG-60H

LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant voltage / constant current (mixed mode) and 60W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function, a potentiometer for adjusting the current limitation as well as the output voltage and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-60H-15AB, HLG-60H-20AB, HLG-60H-24AB, HLG-60H-30AB, HLG-60H-36AB, HLG-60H-42AB, HLG-60H-48AB and HLG-60H-54AB.

  • single output
  • output: 60W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 171x61,5x36,8mm
  • weight: 730g
HLG-60H-24AB

HLG-60H-24AB

113214 HLG-60H-24AB HLG-60H-24AB 4711287481111 Mean Well LED driver series HLG-60H. LED drivers in a metal housing (IP65) with a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant voltage / constant current (mixed mode) and 60W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function, a potentiometer for adjusting the current limitation as well as the output voltage and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-60H-15AB, HLG-60H-20AB, HLG-60H-24AB, HLG-60H-30AB, HLG-60H-36AB, HLG-60H-42AB, HLG-60H-48AB and HLG-60H-54AB. single output output: 60W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 171x61,5x36,8mm weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-60H-24AB
GTIN 4711287481111
Output voltage [V] 24
Efficiency [%] 89,5
Output current [A] 2,5
Output voltage tolerance: [%] 1
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

31,39 €

Volume discounts

Quantity Unit price
50 + 29,19 €

Stock: 79
