Mean Well power supply series HLG-60H

LED switching power supplies in a metal housing (IP65) with a constant current, a constant voltage and a wide input range. These devices with a built-in active PFC function are suited for LED lighting applicat...

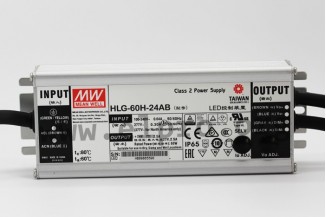

Mean Well power supply series HLG-60H

LED switching power supplies in a metal housing (IP65) with a constant current, a constant voltage and a wide input range. These devices with a built-in active PFC function are suited for LED lighting applications and are protected against short-circuit, overtemperature, overvoltage, overcurrent and overload through a constant current limiting (auto recovery). Furthermore, they are SELV compliant, have a 3 in 1 dimming function (potentiometer, PWM or 1 to 10V DC) and are in compliance with the EMC standards  EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547 as well with the safety standards EN 61347-1 and EN 61347-2-13. The output voltage and current are adjustable via a built-in potentiometer. We offer the type HLG-60H-24AB of this series.

  • single output
  • output: 60W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 730g
> More
Download

Showing 1 - 1 of 1 item
  • article stock price volume discount
  • MeanWell
    HLG-60H-24AB
    26,80 €
    113214 HLG-60H-24AB HLG-60H-24AB
    26,80 €
    20 pcs. / 23,60 €
    stock: 77
