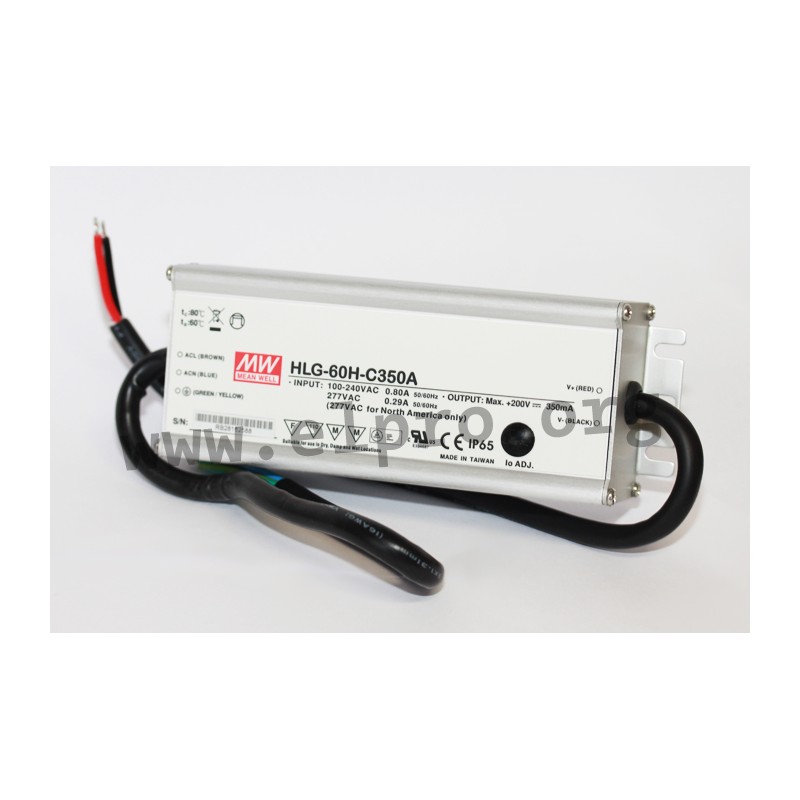

HLG-60H-C350A

Mean Well LED driver series HLG-60H-C

LED drivers in an aluminium housing (IP65) with a universal input, 70W, a high output voltage and a constant current. These devices are suitable for LED lighting applications and comply with EN55015, Class C as well as EN61000-3-2. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: HLG-60H-C350A and HLG-60H-C700A.

  • single output
  • output: 70W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 171x61,5x36,8mm
  • weight: 730g
Meanwell HLG-60H-C series

HLG-60H-C350A

41246 HLG-60H-C350A HLG-60H-C350A 4711287452012 Mean Well LED driver series HLG-60H-C. LED drivers in an aluminium housing (IP65) with a universal input, 70W, a high output voltage and a constant current. These devices are suitable for LED lighting applications and comply with EN55015, Class C as well as EN61000-3-2. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: HLG-60H-C350A and HLG-60H-C700A. single output output: 70W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 171x61,5x36,8mm weight: 730g

Specifications

manufacturer
Manufacturer's name HLG-60H-C350A
GTIN 4711287452012
Output voltage [V] 100...200
Phase 2 phase
Output current adjustment [A] 0,21...0,35
Efficiency [%] 91
Output power [W] 70
Ripple [mVp-p] 1000
Data Sheet

Unit price

29,79 €

Volume discounts

Quantity Unit price
50 + 27,69 €

Stock: 51
Further delivery:
CW 32/2024
