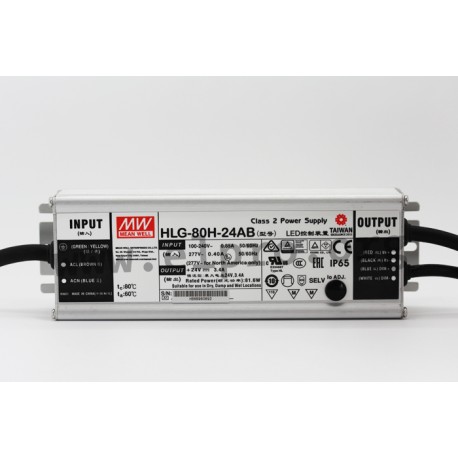

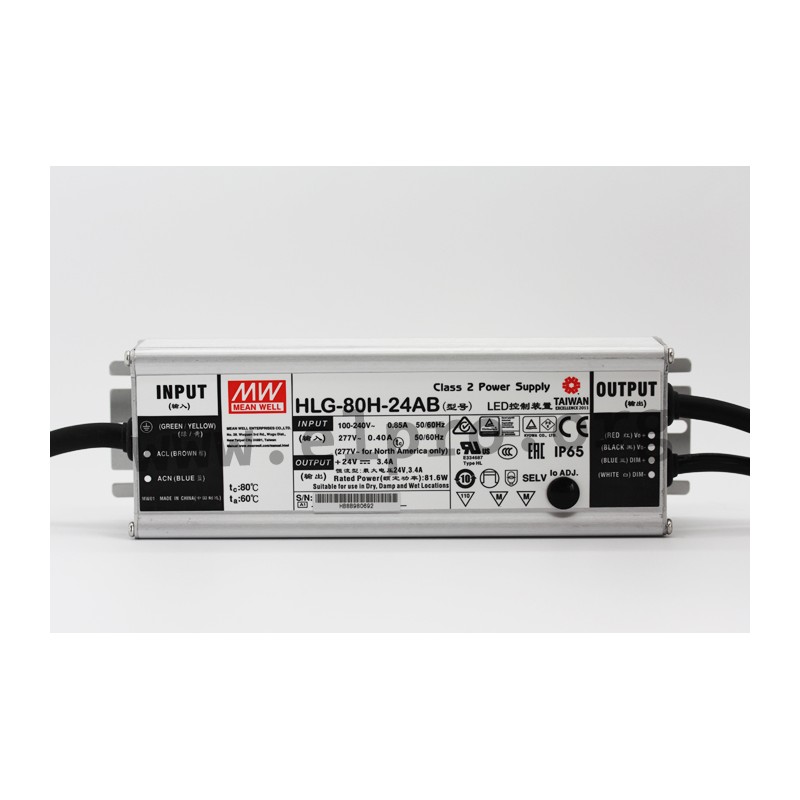

HLG-80H-24AB

Mean Well LED driver series HLG-80H

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), 80W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-80H-12AB, HLG-80H-15AB, HLG-80H-20AB, HLG-80H-24AB, HLG-80H-30AB, HLG-80H-36AB, HLG-80H-42AB, HLG-80H-48AB and HLG-80H-54AB.

  • single output
  • output: 60 to 81,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 195,6x61,5x38,8mm
  • weight: 840g
HLG-80H-24AB

HLG-80H-24AB

113221 HLG-80H-24AB HLG-80H-24AB 4711287481708 Mean Well LED driver series HLG-80H. LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), 80W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-80H-12AB, HLG-80H-15AB, HLG-80H-20AB, HLG-80H-24AB, HLG-80H-30AB, HLG-80H-36AB, HLG-80H-42AB, HLG-80H-48AB and HLG-80H-54AB. single output output: 60 to 81,6W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 195,6x61,5x38,8mm weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-24AB
GTIN 4711287481708
Output voltage [V] 24
Efficiency [%] 90,5
Output current [A] 3,4
Output voltage tolerance: [%] 1
Output power [W] 81,6
Ripple [mVp-p] 150
Data Sheet

Unit price

36,19 €

Volume discounts

Quantity Unit price
50 + 34,89 €

Stock: 40
Further delivery:
CW 33/2024
