Mean Well LED power supply series HLG-80H

Switching power supplies in a metal housing (IP65) with a constant voltage and a constant current (dual mode). These SELV compliant devices are suitable for LED lighting applications and are protected agai...

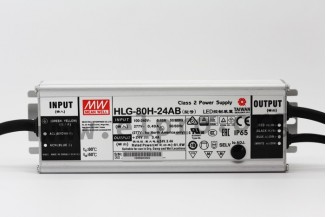

Mean Well LED power supply series HLG-80H

Switching power supplies in a metal housing (IP65) with a constant voltage and a constant current (dual mode). These SELV compliant devices are suitable for LED lighting applications and are protected against short-circuit, overcurrent, overvoltage, overtemperature and overload through constant current limiting (auto recovery). Furthermore, these power supplies have a wide input range, a built-in PFC function, a 3 in 1 dimming function (potentiometer, 1 to 10V DC, PWM) and are in compliance with the safety standards EN 61347-1 and EN 61347-2-13 as well as with the EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547. The output voltage and current of these power supplies are adjustable through a built-in potentiometer. Our product range contains the following types of this series: HLG-80H-12AB and HLG-80H-24AB.

  • single output
  • output: 60 to 81,6 watts
  • input voltage: 127 to 431V DC, 90 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • output current protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 840g
> More
Download

Showing 1 - 2 of 2 items
  • article stock price volume discount
  • MeanWell
    Mean Well HLG-80H series
    34,10 €
    113220 HLG-80H-12AB HLG-80H-12AB
    34,10 €
    20 pcs. / 30,20 €
    stock: 72
  • MeanWell
    HLG-80H-24AB
    34,10 €
    113221 HLG-80H-24AB HLG-80H-24AB
    34,10 €
    20 pcs. / 30,20 €
    stock: 139
Showing 1 - 2 of 2 items
