HLG-80H-42B

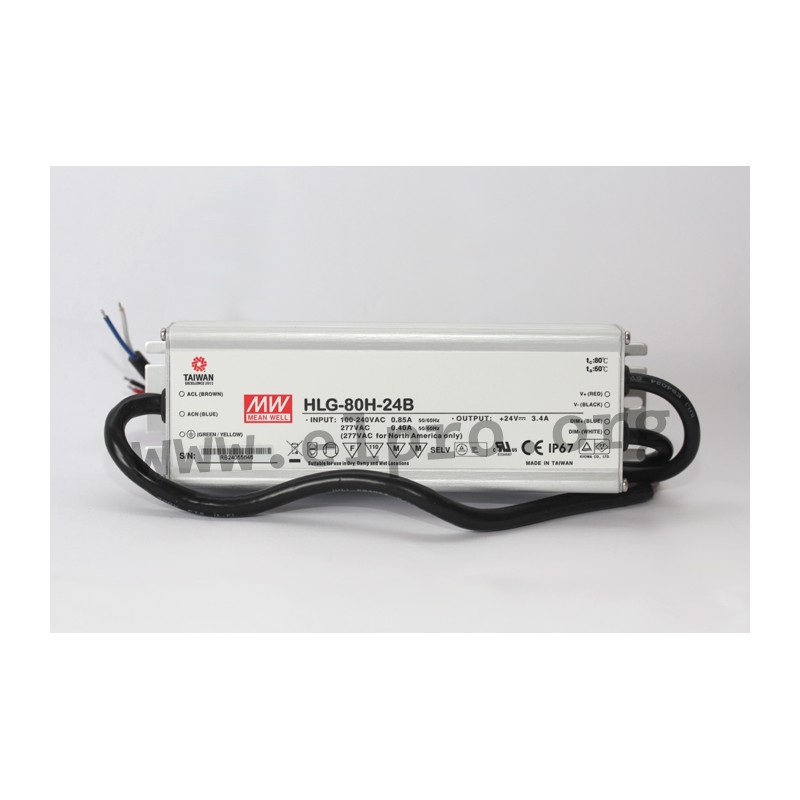

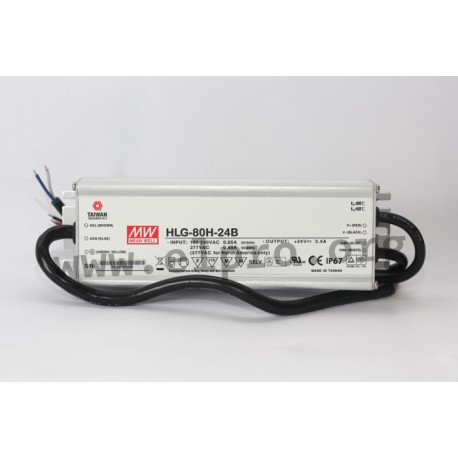

Mean Well LED driver series HLG-80H

LED drivers in an aluminium housing (IP67) with a constant current, 80W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature, are suitable for LED lighting applications and are dimmable by an executed control line. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-12B, HLG-80H-15B, HLG-80H-20B, HLG-80H-24B, HLG-80H-30B, HLG-80H-36B, HLG-80H-42B, HLG-80H-48B and HLG-80H-54B.

  • single output
  • output: 60 to 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 840g

HLG-80H-42B

135803 HLG-80H-42B HLG-80H-42B 4711287449005 Mean Well LED driver series HLG-80H. LED drivers in an aluminium housing (IP67) with a constant current, 80W and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature, are suitable for LED lighting applications and are dimmable by an executed control line. They comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-80H-12B, HLG-80H-15B, HLG-80H-20B, HLG-80H-24B, HLG-80H-30B, HLG-80H-36B, HLG-80H-42B, HLG-80H-48B and HLG-80H-54B. single output output: 60 to 82,8W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 70A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C weight: 840g

Specifications

manufacturer
Manufacturer's name HLG-80H-42B
GTIN 4711287449005
Output voltage [V] 42
Phase 2 phase
Efficiency [%] 91
Output voltage tolerance: [%] 1
Output power [W] 81,9
Ripple [mVp-p] 200
Data Sheet

Unit price

34,69 €

Volume discounts

Quantity Unit price
50 + 33,49 €

Stock: 21
Further delivery:
CW 29/2024
