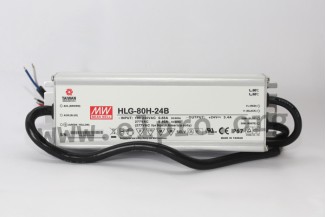

Mean Well LED driver series HLG-80H

LED drivers in an aluminium housing (IP67) with 80W, a constant current, a wide input range and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices have a built-in a...

Mean Well LED driver series HLG-80H

LED drivers in an aluminium housing (IP67) with 80W, a constant current, a wide input range and a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer). These SELV compliant devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lightning applications, are dimmable by an executed control line and comply with EN61347-1, EN61347-2-13, EN55015 and EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-80H-12B, HLG-80H-15B, HLG-80H-20B, HLG-80H-24B, HLG-80H-30B, HLG-80H-36B, HLG-80H-42B, HLG-80H-48B and HLG-80H-54B.

  • single output
  • output: 60 to 82,8W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • weight: 840g
> More
Download

Showing 1 - 9 of 9 items
  • article stock price volume discount
  • Mean Well
    HLG-80H-12B
    33,30 €
    36532 HLG-80H-12B HLG-80H-12B
    33,30 €
    20 pcs. / 29,40 €
    stock: 261
  • Mean Well
    HLG-80H-15B, Mean Well LED drivers, 80W, IP67, dimmable, HLG-80H series
    33,30 €
    135796 HLG-80H-15B HLG-80H-15B
    33,30 €
    20 pcs. / 29,40 €
    stock: 16
  • Mean Well
    HLG-80H-20B, Mean Well LED drivers, 80W, IP67, dimmable, HLG-80H series
    33,30 €
    135798 HLG-80H-20B HLG-80H-20B
    33,30 €
    20 pcs. / 29,40 €
    stock: 16
  • Mean Well
    HLG-80H-24B
    33,30 €
    36531 HLG-80H-24B HLG-80H-24B
    33,30 €
    20 pcs. / 29,40 €
    stock: 285
  • Mean Well
    HLG-80H-30B, Mean Well LED drivers, 80W, IP67, dimmable, HLG-80H series
    33,30 €
    135800 HLG-80H-30B HLG-80H-30B
    33,30 €
    20 pcs. / 29,40 €
    stock: 16
  • Mean Well
    HLG-80H-36B
    33,30 €
    104546 HLG-80H-36B HLG-80H-36B
    33,30 €
    20 pcs. / 29,40 €
    stock: 4
  • Mean Well
    HLG-80H-42B, Mean Well LED drivers, 80W, IP67, dimmable, HLG-80H series
    33,30 €
    135803 HLG-80H-42B HLG-80H-42B
    33,30 €
    20 pcs. / 29,40 €
    stock: 15
  • Mean Well
    HLG-80H-48B, Mean Well LED drivers, 80W, IP67, dimmable, HLG-80H series
    33,30 €
    135805 HLG-80H-48B HLG-80H-48B
    33,30 €
    20 pcs. / 29,40 €
    stock: 16
  • Mean Well
    HLG-80H-54B, Mean Well LED drivers, 80W, IP67, dimmable, HLG-80H series
    33,30 €
    135807 HLG-80H-54B HLG-80H-54B
    33,30 €
    20 pcs. / 29,40 €
    stock: 16
Showing 1 - 9 of 9 items
