HLN-40H-36A

Mean Well LED driver series HLN-40H

LED drivers in a plastic housing (IP64) with a constant voltage, 40W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are not dimmable. We offer the following types of this Mean Well series: HLN-40H-12A, HLN-40H-15A, HLN-40H-20A, HLN-40H-24A, HLN-40H-30A, HLN-40H-36A, HLN-40H-42A, HLN-40H-48A and HLN-40H-54A.

  • single output
  • output: 40 to 40,5W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +50°C

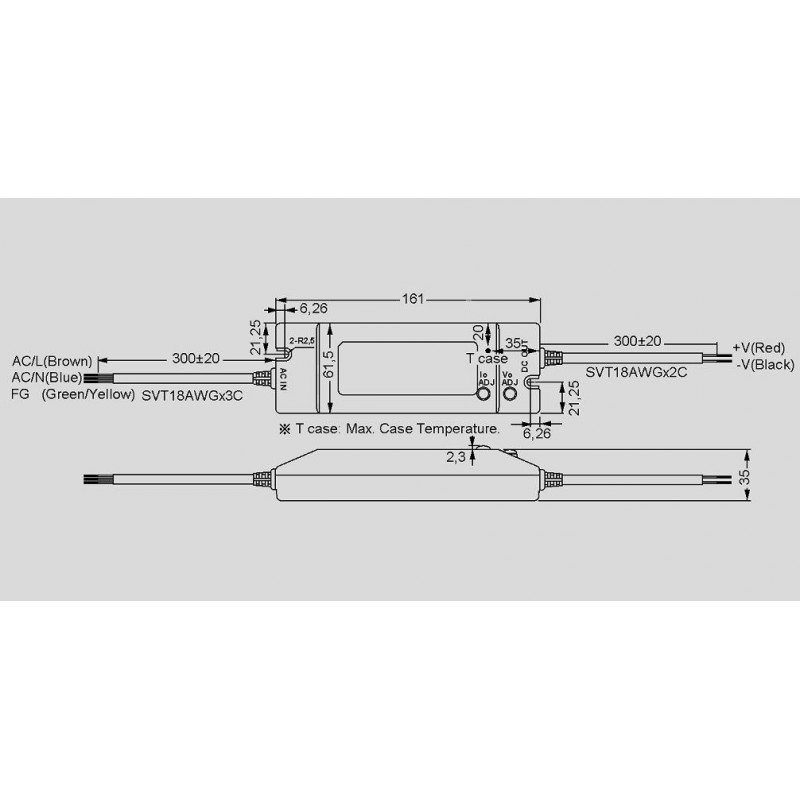

  • dimensions: 161x61,5x35mm
  • weight: 350g

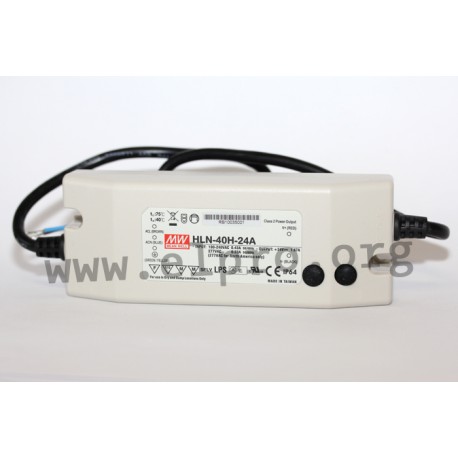

Meanwell HLN-40H series

HLN-40H-36A

36080 HLN-40H-36A HLN-40H-36A 4711287460888 Mean Well LED driver series HLN-40H. LED drivers in a plastic housing (IP64) with a constant voltage, 40W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage and are suitable for LED lighting applications. They have a built-in active PFC function as well as a built-in potentiometer for adjusting the current limitation and are not dimmable. We offer the following types of this Mean Well series: HLN-40H-12A, HLN-40H-15A, HLN-40H-20A, HLN-40H-24A, HLN-40H-30A, HLN-40H-36A, HLN-40H-42A, HLN-40H-48A and HLN-40H-54A. single output output: 40 to 40,5W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +50°C dimensions: 161x61,5x35mm weight: 350g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name HLN-40H-36A
GTIN 4711287460888
Output voltage [V] 36
Phase 2 phase
Output current adjustment [A] 0,67...1,12
Efficiency [%] 88,5
Output voltage tolerance: [%] 1
Output power [W] 40,3
Output voltage adjustment [V] 33...40
Ripple [mV] 200
Data Sheet

Unit price

35,49 €

Stock: 0
