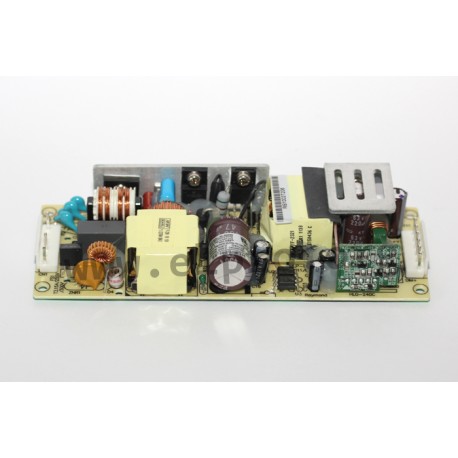

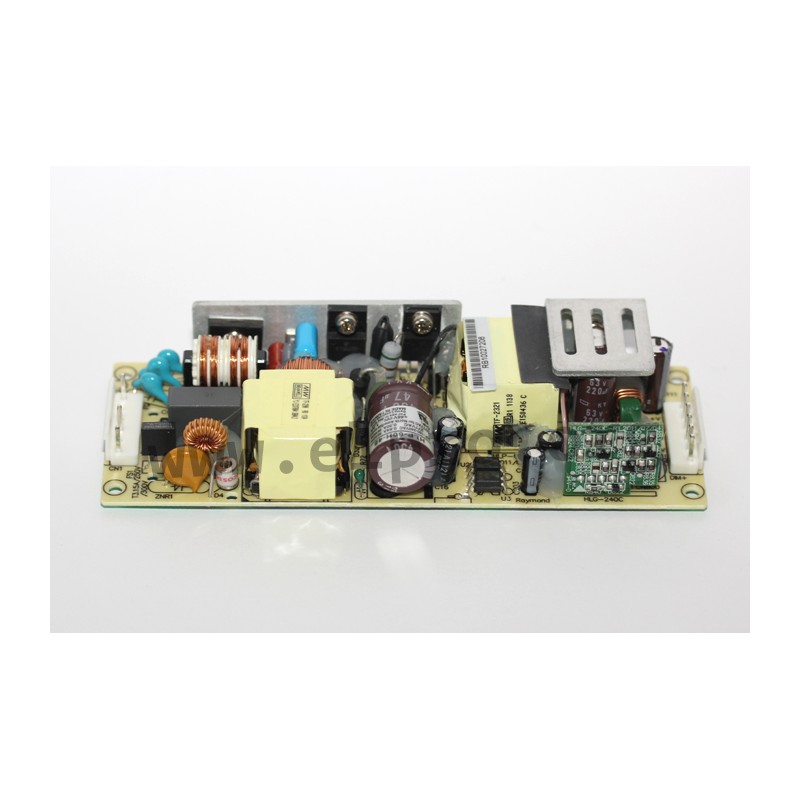

HLP-60H-36

Mean Well LED driver series HLP-60H

Open frame LED drivers with 60W, a universal input, a constant voltage/current and a 3 in 1 dimming function (1 to 10V DC, PWM, potentiometer). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage as well as short circuit. They have both an adjustable output voltage and an adjustable output current and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLP-60H-15, HLP-60H-20, HLP-60H-24, HLP-60H-30, HLP-60H-36, HLP-60H-42, HLP-60H-48 and HLP-60H-54.

  • single output
  • output: 60 to 62,1W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -40 to +70°C

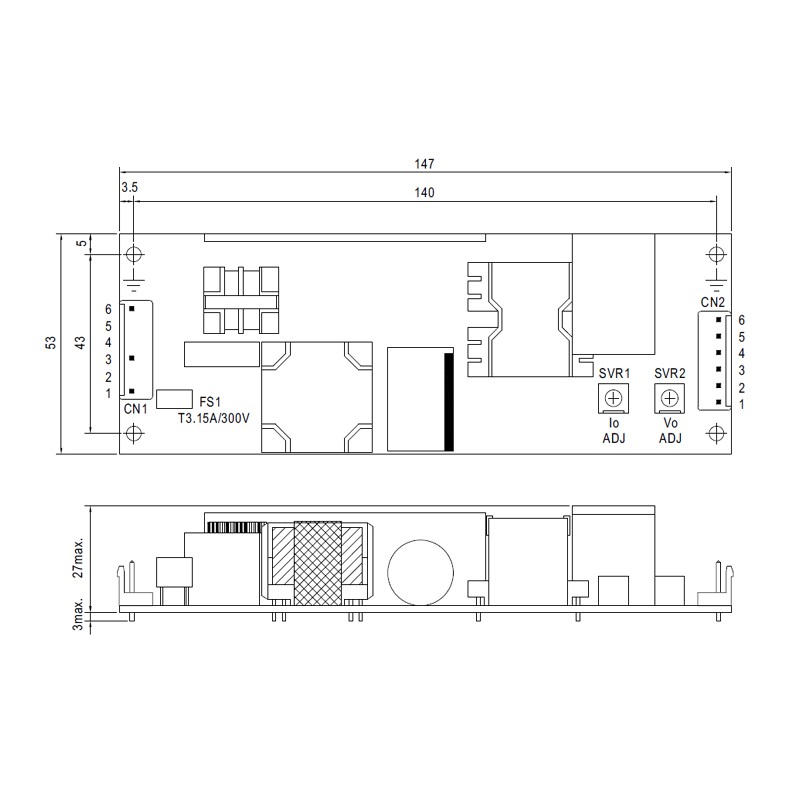

  • dimensions: 147x53x27mm
  • weight: 200g
HLP-60H-36

HLP-60H-36

36221 HLP-60H-36 HLP-60H-36 4711287462806 Mean Well LED driver series HLP-60H. Open frame LED drivers with 60W, a universal input, a constant voltage/current and a 3 in 1 dimming function (1 to 10V DC, PWM, potentiometer). These devices have a built-in active PFC function, are suitable for LED lighting applications and are protected against overload (auto recovery), overvoltage as well as short circuit. They have both an adjustable output voltage and an adjustable output current and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: HLP-60H-15, HLP-60H-20, HLP-60H-24, HLP-60H-30, HLP-60H-36, HLP-60H-42, HLP-60H-48 and HLP-60H-54. single output output: 60 to 62,1W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -40 to +70°C dimensions: 147x53x27mm weight: 200g

Specifications

manufacturer
Manufacturer's name HLP-60H-36
GTIN 4711287462806
Output voltage [V] 36
Phase 2 phase
Output current adjustment [A] 1...1,7
Efficiency [%] 90
Output voltage tolerance: [%] 1
Output power [W] 61,2
Ripple [mVp-p] 200
Output voltage adjustment [V] 33...40
Data Sheet

Unit price

32,99 €

Stock: 0
Further delivery:
CW 45/2024
