HVGC-320-2100A

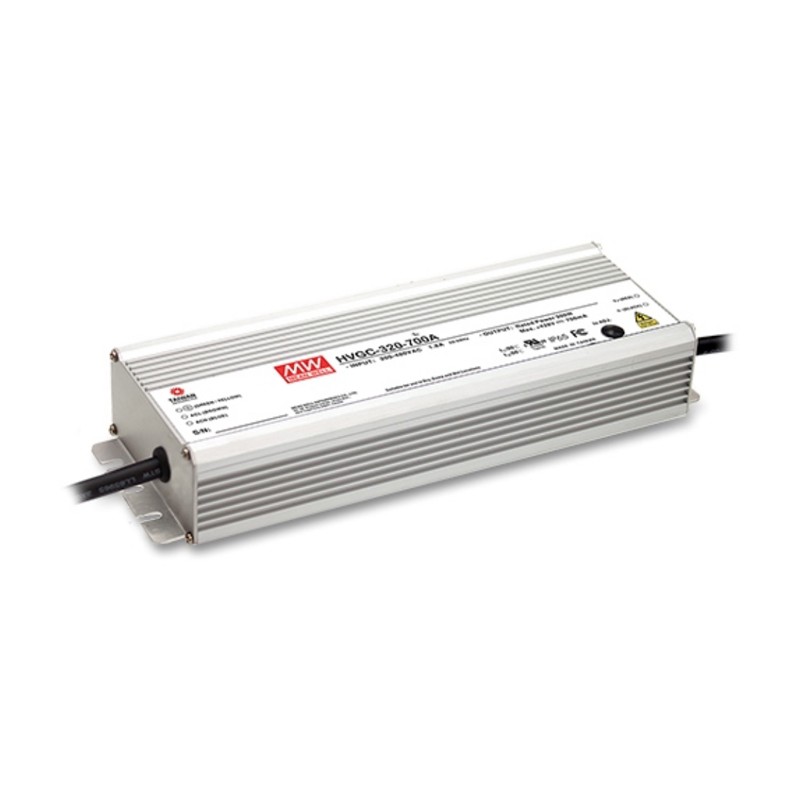

Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP65) with 320W, a constant current and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN61547, EN61000-3-2 class C, EN61000-3-3 as well as EN55015. We offer the following types of this Mean Well series: HVGC-320-700A, HVGC-320-1050A, HVGC-320-1400A, HVGC-320-1750A, HVGC-320-2100A, HVGC-320-2800A and HVGC-320-3500A.

  • single output
  • output: 300 to 320W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A (480V)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x90x43,8mm
  • weight: 2000g

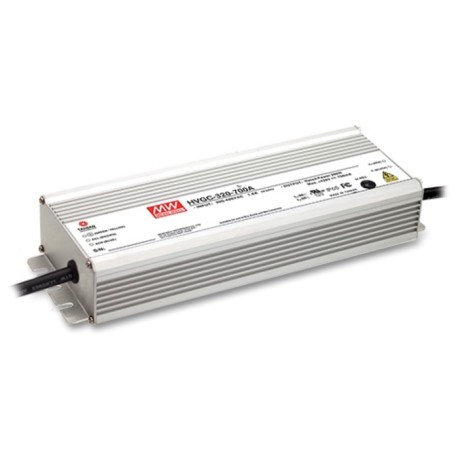

HVGC-320-2100A, Mean Well LED drivers, 320W, IP65, constant current, adjustable, high voltage, HVGC-320 series

HVGC-320-2100A

244820 HVGC-320-2100A HVGC-320-2100A 4711287454900 Mean Well LED driver series HVGC-320. LED drivers in a metal housing (IP65) with 320W, a constant current and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN61547, EN61000-3-2 class C, EN61000-3-3 as well as EN55015. We offer the following types of this Mean Well series: HVGC-320-700A, HVGC-320-1050A, HVGC-320-1400A, HVGC-320-1750A, HVGC-320-2100A, HVGC-320-2800A and HVGC-320-3500A. single output output: 300 to 320W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 50A (480V) withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 262x90x43,8mm weight: 2000g

Specifications

manufacturer
Manufacturer's name HVGC-320-2100A
GTIN 4711287454900
Output voltage [V] 57,2...114,3
Efficiency [%] 93,5
Output current [A] 1,05...2,1
Output power [W] 320
Data Sheet

Unit price

113,89 €

Stock: 0
