Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP65) with 320W, a constant current and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (aut...

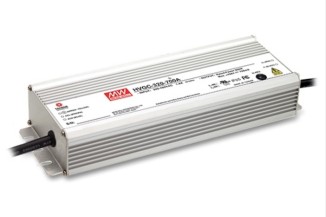

Mean Well LED driver series HVGC-320

LED drivers in a metal housing (IP65) with 320W, a constant current and a potentiometer for adjusting the current limit. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN61547, EN61000-3-2 class C, EN61000-3-3 as well as EN55015. We offer the following types of this Mean Well series: HVGC-320-700A, HVGC-320-1050A, HVGC-320-1400A, HVGC-320-1750A, HVGC-320-2100A, HVGC-320-2800A and HVGC-320-3500A.

  • single output
  • output: 300 to 320W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 50A (480V)
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 262x90x43,8mm
  • weight: 2000g
> More
Data Sheet
