HVGC-650-U-AB

Mean Well LED driver series HVGC-650

LED drivers in an aluminium housing (IP67) with a universal input, a constant power, a 3 in 1 dimming function (adjustable 0 to 10V DC, 10V PWM, potentiometer) and a surge immunity level of 8kV/4kV. These devices are suitable for LED lighting applications and comply with EN61000-3-2 class C as well as EN55015. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: HVGC-650-L-AB, HVGC-650-M-AB, HVGC-650-H-AB and HVGC-650-U-AB.

  • single output
  • output: 649,6 to 651W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 280x144x48,5mm
  • weight: 3900g

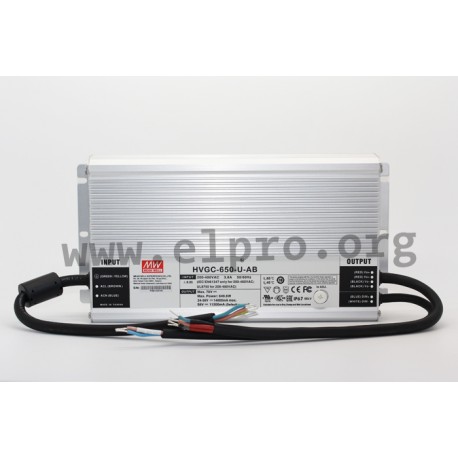

HVGC-650-U-AB, 650 watts, IP67, constant power, dimming function, HVGC-650 series by Meanwell

HVGC-650-U-AB

111893 HVGC-650-U-AB HVGC-650-U-AB 4711287454450 Mean Well LED driver series HVGC-650. LED drivers in an aluminium housing (IP67) with a universal input, a constant power, a 3 in 1 dimming function (adjustable 0 to 10V DC, 10V PWM, potentiometer) and a surge immunity level of 8kV/4kV. These devices are suitable for LED lighting applications and comply with EN61000-3-2 class C as well as EN55015. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: HVGC-650-L-AB, HVGC-650-M-AB, HVGC-650-H-AB and HVGC-650-U-AB. single output output: 649,6 to 651W input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 4200V AC withstand voltage I/P-FG: 2100V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 280x144x48,5mm weight: 3900g

Specifications

manufacturer
Manufacturer's name HVGC-650-U-AB
GTIN 4711287454450
Output voltage [V] 24...58
Efficiency [%] 95,5
Output power [W] 649,6
Ripple & noise [%] 5
Output current adjustment [mA] 5600...14000
Data Sheet

Unit price

206,09 €

Volume discounts

Quantity Unit price
50 + 201,79 €

Stock: 5
Further delivery:
CW 05/2026
