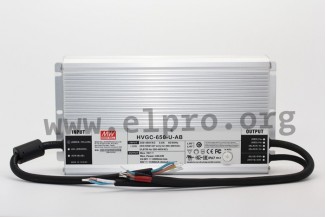

Mean Well LED driver series HVGC-650

LED drivers in an aluminium housing (IP67) with a universal input, a constant power, a 3 in 1 dimming function (adjustable 0 to 10V DC, 10V PWM, potentiometer) and a surge immunity level of 8kV/4kV. These device...

Mean Well LED driver series HVGC-650

LED drivers in an aluminium housing (IP67) with a universal input, a constant power, a 3 in 1 dimming function (adjustable 0 to 10V DC, 10V PWM, potentiometer) and a surge immunity level of 8kV/4kV. These devices are suitable for LED lighting applications and comply with EN61000-3-2 class C as well as EN55015. They are protected against overload (auto recovery), overvoltage as well as short circuit and have a built-in active PFC function. We offer the following types of this Mean Well series: HVGC-650-L-AB, HVGC-650-M-AB, HVGC-650-H-AB and HVGC-650-U-AB.

  • single output
  • output: 649,6 to 651W
  • input voltage: 180 to 528V AC (47 to 63Hz), 254 to 747V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 280x144x48,5mm
  • weight: 3900g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    HVGC-650-L-AB, 650 watts, IP67, constant power, dimming function, HVGC-650 series by Meanwell
    210,09 €
    111891 HVGC-650-L-AB HVGC-650-L-AB
    210,09 €
    Quantity Unit price
    50 + 203,09 €

    More
    Stock: 12
  • Mean Well
    HVGC-650-M-AB, 650 watts, IP67, constant power, dimming function, HVGC-650 series by Meanwell
    222,59 €
    111892 HVGC-650-M-AB HVGC-650-M-AB
    222,59 €
    Quantity Unit price
    50 + 215,19 €

    More
    Stock: 10
  • Mean Well
    HVGC-650-H-AB, 650 watts, IP67, constant power, dimming function, HVGC-650 series by Meanwell
    210,09 €
    111890 HVGC-650-H-AB HVGC-650-H-AB
    210,09 €
    Quantity Unit price
    50 + 203,09 €

    More
    Stock: 18
  • Mean Well
    HVGC-650-U-AB, 650 watts, IP67, constant power, dimming function, HVGC-650 series by Meanwell
    222,59 €
    111893 HVGC-650-U-AB HVGC-650-U-AB
    222,59 €
    Quantity Unit price
    50 + 215,19 €

    More
    Stock: 1
