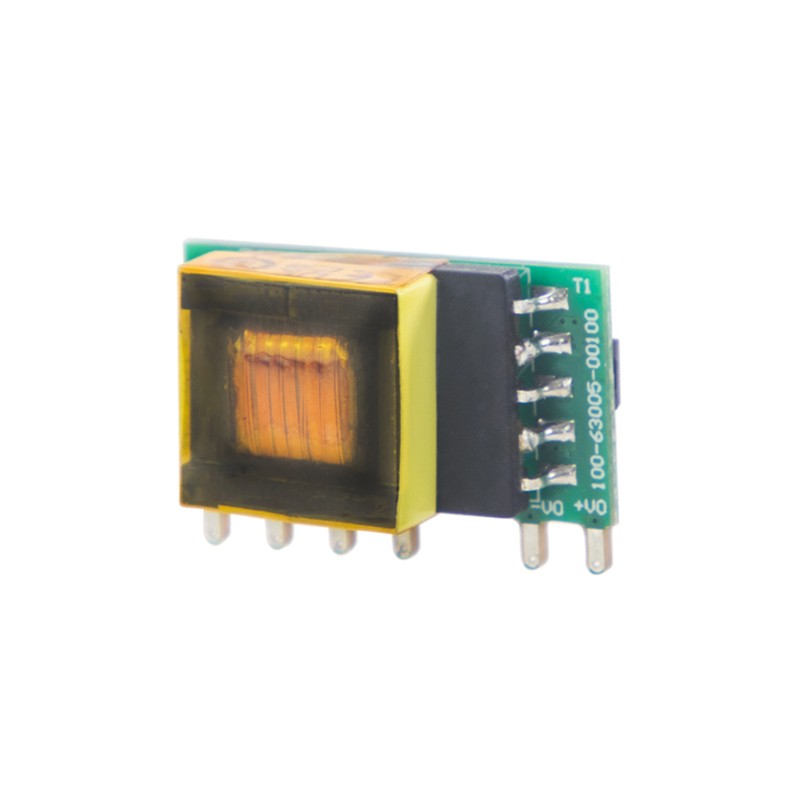

IOB-05-24

Mean Well AC/DC industry power supplies series IOB-05

Open frame type industry power supplies with 5W, insulation class II, and a low no-load power (>0,15W). These devices are protected against overload (auto recovery), overvoltage as well as short circuit, and they are suitable for PCB mounting. We offer the following types of this Mean Well series: IOB-05-03, IOB-05-05, IOB-05-09, IOB-05-12, IOB-05-15, and IOB-05-24.

  • single output
  • output: 3,3 to 5,1W
  • output voltage: 3,3 to 24V DC
  • input voltage: 80 to 305V AC (47 to 63Hz) 100 to 430V DC
  • operating temperature: -40 to +85°C

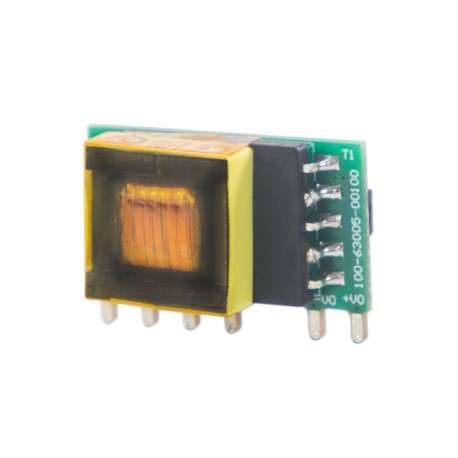

IOB-05-24, Mean Well AC/DC industry power supplies, 5W, open frame (PCB), IOB-05 series

IOB-05-24

255247 IOB-05-24 IOB-05-24 Mean Well AC/DC industry power supplies series IOB-05. Open frame type industry power supplies with 5W, insulation class II, and a low no-load power (>0,15W). These devices are protected against overload (auto recovery), overvoltage as well as short circuit, and they are suitable for PCB mounting. We offer the following types of this Mean Well series: IOB-05-03, IOB-05-05, IOB-05-09, IOB-05-12, IOB-05-15, and IOB-05-24. single output output: 3,3 to 5,1W output voltage: 3,3 to 24V DC input voltage: 80 to 305V AC (47 to 63Hz) 100 to 430V DC operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name IOB-05-24
Output voltage [V] 24
Output current [A] 0,21
Output power [W] 5,04
Data Sheet

Unit price

5,59 €

Volume discounts

Quantity Unit price
50 + 5,09 €

Stock: 2
Further delivery:
CW 05/2026
