IRM-45-5ST

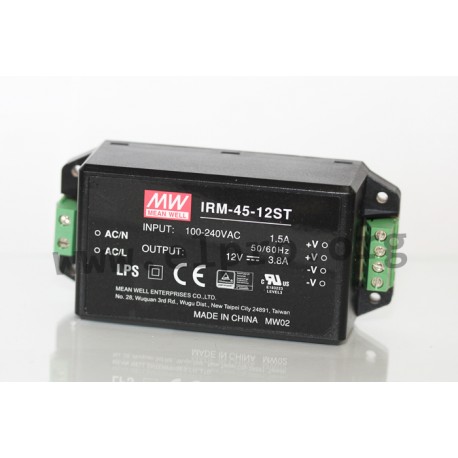

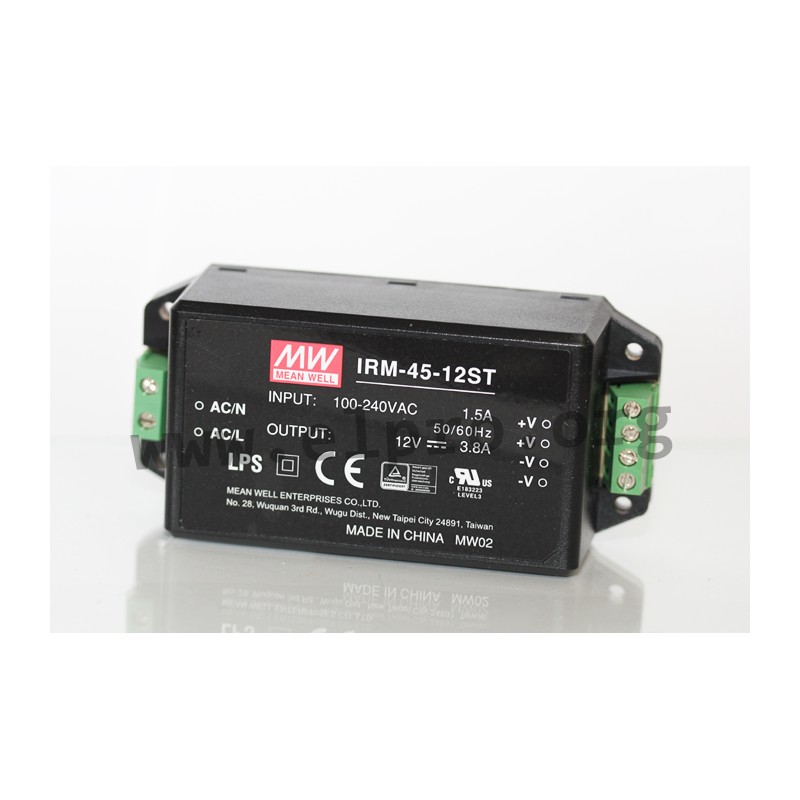

AC/DC converter modules IRM-45 by Meanwell

These converter modules have an enclosed case and - due to their compact design - fit also on narrow circuit boards. They are endued with universal input, single output, isolation class II and protections against short circuit, overload ad overtemperature. The devices have a low no load power consumption and a high efficiency. The cooling is ensured by free air convection. IRM-45 is suited for PCB mounting, IRM-45_ST has screw terminals. We offer the following types by manufacturer Mean Well: IRM-45-5, IRM-45-12, IRM-45-15, IRM-45-24, IRM-45-48, IRM-45-5ST, IRM-45-12ST, IRM-45-15ST, IRM-45-24ST and IRM-45-48ST.

• output: 40 W
• input voltage: up 85 to 264 volt AC (47 to 440Hz)
• maximal input inrush current: 60A
• maximal no load power consumption: 0.1 W
• I/P-O/P, withstand voltage: 3000 volt AC
• operating temperature: -30 to +70 °C
• by Meanwell
• weight: 280 g

IRM-45-5ST

104824 IRM-45-5ST IRM-45-5ST AC/DC converter modules IRM-45 by Meanwell. These converter modules have an enclosed case and - due to their compact design - fit also on narrow circuit boards. They are endued with universal input, single output, isolation class II and protections against short circuit, overload ad overtemperature. The devices have a low no load power consumption and a high efficiency. The cooling is ensured by free air convection. IRM-45 is suited for PCB mounting, IRM-45_ST has screw terminals. We offer the following types by manufacturer Mean Well: IRM-45-5, IRM-45-12, IRM-45-15, IRM-45-24, IRM-45-48, IRM-45-5ST, IRM-45-12ST, IRM-45-15ST, IRM-45-24ST and IRM-45-48ST.• output: 40 W• input voltage: up 85 to 264 volt AC (47 to 440Hz)• maximal input inrush current: 60A• maximal no load power consumption: 0.1 W• I/P-O/P, withstand voltage: 3000 volt AC• operating temperature: -30 to +70 °C• by Meanwell• weight: 280 g

Data sheet

manufacturer
manufacturer's name IRM-45-5ST
output voltage [V] 5
efficiency [%] 83,5
output current [A] 0...8
output voltage tolerance: [%] 2,5
output power [W] 40
ripple [mVp-p] 80

Download

Data Sheet

13,40 €

Volume discounts

20 pcs. / 11,90 €

stock: 54
