IRM-60-5ST

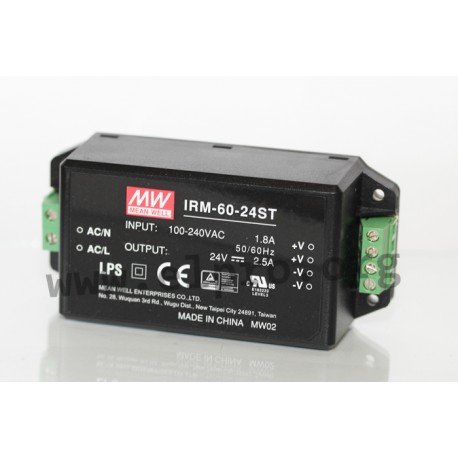

AC/DC converter modules IRM-60 by Meanwell

These converter modules have an enclosed case and - due to their compact design - fit also on narrow circuit boards. They are endued with universal input, single output, isolation class II and protections against short circuit, overload ad overtemperature. The devices have a low no load power consumption and a high efficiency. The cooling is ensured by free air convection. With screw terminals. We offer the following types by manufacturer Mean Well: IRM-60-5, IRM-60-12, IRM-60-15, IRM-60-24, IRM-60-48, IRM-60-5ST, IRM-60-12ST, IRM-60-15ST, IRM-60-24ST and IRM-60-48ST.

• output: 50 W
• input voltage: up 85 to 264 V AC (47 to 440Hz)
• maximal input inrush current: 60A
• maximal no load power consumption: 0.1 W
• I/P-O/P, withstand voltage: 3000 V AC
• operating temperature: -30 to +70 °C
• by Meanwell
• weight: 270 g

IRM-60-5ST

104834 IRM-60-5ST IRM-60-5ST AC/DC converter modules IRM-60 by Meanwell. These converter modules have an enclosed case and - due to their compact design - fit also on narrow circuit boards. They are endued with universal input, single output, isolation class II and protections against short circuit, overload ad overtemperature. The devices have a low no load power consumption and a high efficiency. The cooling is ensured by free air convection. With screw terminals. We offer the following types by manufacturer Mean Well: IRM-60-5, IRM-60-12, IRM-60-15, IRM-60-24, IRM-60-48, IRM-60-5ST, IRM-60-12ST, IRM-60-15ST, IRM-60-24ST and IRM-60-48ST.• output: 50 W• input voltage: up 85 to 264 V AC (47 to 440Hz)• maximal input inrush current: 60A• maximal no load power consumption: 0.1 W• I/P-O/P, withstand voltage: 3000 V AC• operating temperature: -30 to +70 °C• by Meanwell• weight: 270 g

Data sheet

manufacturer
manufacturer's name IRM-60-5ST
output voltage [V] 5
efficiency [%] 84
output current [A] 0...10
output voltage tolerance: [%] 2,5
output power [W] 50
ripple [mVp-p] 80

Download

Data Sheet

14,80 €

Volume discounts

20 pcs. / 13,10 €

stock: 81
