Manufacturers

IRM-60-48

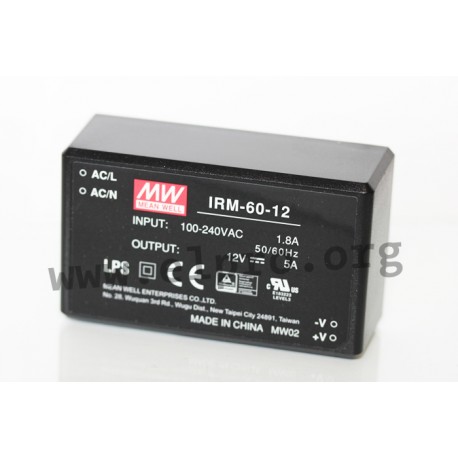

Mean Well AC/DC converter series IRM-60

Switching power supplies in an enclosed housing with 60W, insulation class II, a universal input and a low no-load power. These devices are suitable for PCB mounting (IRM-60_) as well as for mounting by screw terminals (IRM-60-_ST) and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: IRM-60-5, IRM-60-12, IRM-60-15, IRM-60-24, IRM-60-48, IRM-60-5ST, IRM-60-12ST, IRM-60-15ST, IRM-60-24ST and IRM-60-48ST.

  • single output
  • output: 50 to 60W
  • input voltage: 85 to 305V AC (47 to 440Hz)
  • maximal input inrush current: 60A
  • no-load power: <0,1W
  • withstand voltage: 3000V AC
  • operating temperature: -30 to +70°C
  • weight IRM-60_: 195g
  • weight IRM-60-_ST: 228g

IRM-60-48

104841 IRM-60-48 IRM-60-48 4711287424132 Mean Well AC/DC converter series IRM-60. Switching power supplies in an enclosed housing with 60W,&nbsp;insulation class II, a universal input and a low no-load power. These devices are suitable for PCB mounting (IRM-60_) as well as for mounting by screw terminals (IRM-60-_ST) and are protected against overload,&nbsp;overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;IRM-60-5, IRM-60-12, IRM-60-15, IRM-60-24, IRM-60-48, IRM-60-5ST, IRM-60-12ST, IRM-60-15ST, IRM-60-24ST and IRM-60-48ST. single output output: 50 to 60W input voltage: 85 to 305V AC (47 to 440Hz) maximal input inrush current: 60A no-load power: &lt;0,1W withstand voltage: 3000V AC operating temperature: -30 to +70&deg;C weight IRM-60_: 195g weight IRM-60-_ST: 228g

Specifications

manufacturer
Manufacturer's name IRM-60-48
GTIN 4711287424132
Output voltage [V] 48
Efficiency [%] 91
Output current [A] 0...1,25
Output voltage tolerance: [%] 2,5
Output power [W] 60
Ripple [mVp-p] 240
Data Sheet

Unit price

12,59 €

Volume discounts

Quantity Unit price
50 + 11,69 €

Stock: 5
Next incoming goods:
CW 25/2024
60 units


Further delivery:
CW 29/2024
