LDB-600L

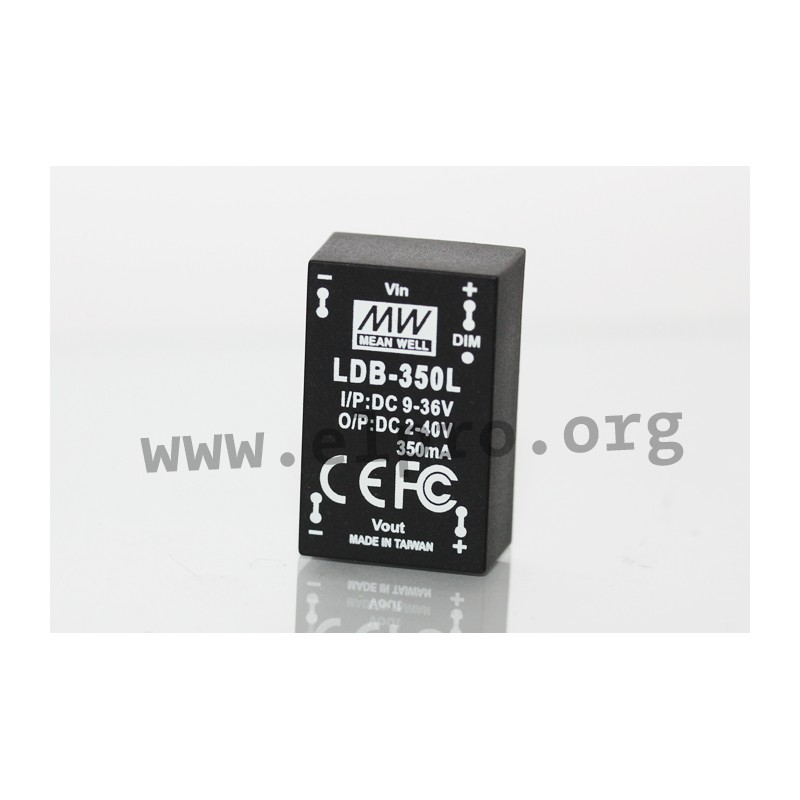

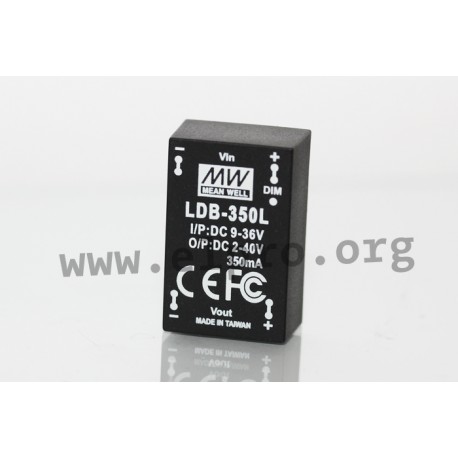

Mean Well DC/DC LED driver series LDB-L

DC/DC buck-boost LED drivers with a constant current output, a stranded wire connection (LDB-_LW) and a built-in EMI filter without additional input filter and capacitors. These devices have a built in PWM as well as a remote ON/OFF control and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications and have a fanless design. We offer the following types of this Mean Well series: LDB-300L, LDB-350L, LDB-500L, LDB-600L, LDB-300LW, LDB-350LW, LDB-500LW and LDB-600LW.

  • input voltage: 9 to 36V DC
  • operating temperature: -40 to +71°C
  • weight LDB-_L: 15,6g
  • weight LDB-_LW: 18g
Meanwell LDB_L series

LDB-600L

45063 LDB-600L LDB-600L 4711287479972 Mean Well DC/DC LED driver series LDB-L. DC/DC buck-boost LED drivers with a constant current output, a stranded wire connection (LDB-_LW) and a built-in EMI filter without additional input filter and capacitors. These devices have a built in PWM as well as a remote ON/OFF control and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications and have a fanless design. We offer the following types of this Mean Well series: LDB-300L, LDB-350L, LDB-500L, LDB-600L, LDB-300LW, LDB-350LW, LDB-500LW and LDB-600LW. input voltage: 9 to 36V DC operating temperature: -40 to +71°C weight LDB-_L: 15,6g weight LDB-_LW: 18g

Specifications

manufacturer
Manufacturer's name LDB-600L
GTIN 4711287479972
Input voltage [V] 9...28
Output voltage [V] 2...30
Ripple [mAp-p] 200
Output current range [mA] 0...600
Efficiency [%] 91
Data Sheet

Unit price

7,69 €

Volume discounts

Quantity Unit price
50 + 7,09 €

Stock: 8
Next incoming goods:
CW 23/2024
45 units

Further delivery:
CW 39/2024
