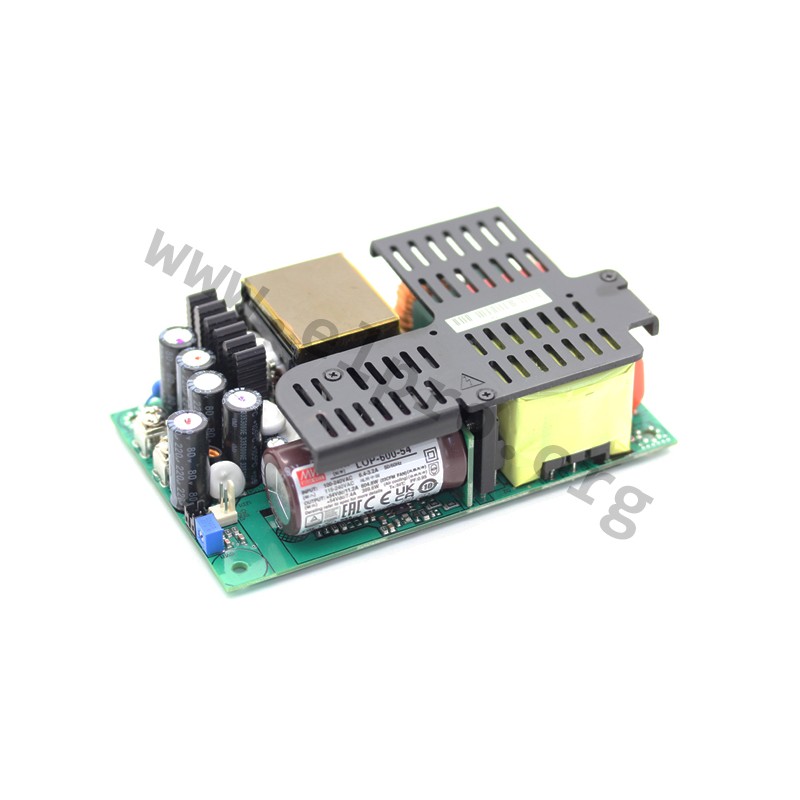

LOP-600-18

Mean Well power supply series LOP-600

Open frame switching power supplies with 600W (forced air), a low no-load power, protection class I/II, an adjustable output voltage and an auxiliary output power (12V/0,5A). These devices are suitable for medical technology applications (2xMOPP), have a peak power capability of 150% and are protected against overvoltage, overload, overtemperature as well as short circuit. They have a built-in active PFC function and comply with EN60601-1, EN62368-1, EN61558-1, EN61558-2-16, EN55032 class A/B as well as EN5014. We offer the following types of this Mean Well series: LOP-600-12, LOP-600-15, LOP-600-18, LOP-600-24, LOP-600-27, LOP-600-36, LOP-600-48 and LOP-600-54.

  • single output
  • output: 599,4 to 604,8W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • maximal input inrush current: 80A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 127x76,2x33,5mm
  • weight: 480g

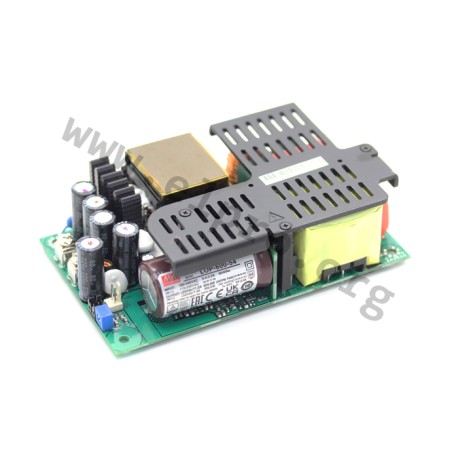

LOP-600-18, Mean Well switching power supplies, 600W (forced air), for medical technology, open frame (PCB), LOP-600 series

LOP-600-18

245476 LOP-600-18 LOP-600-18 Mean Well power supply series LOP-600. Open frame switching power supplies with 600W (forced air), a low no-load power, protection class I/II, an adjustable output voltage and an auxiliary output power (12V/0,5A). These devices are suitable for medical technology applications (2xMOPP), have a peak power capability of 150% and are protected against overvoltage, overload, overtemperature as well as short circuit. They have a built-in active PFC function and comply with EN60601-1, EN62368-1, EN61558-1, EN61558-2-16, EN55032 class A/B as well as EN5014. We offer the following types of this Mean Well series: LOP-600-12, LOP-600-15, LOP-600-18, LOP-600-24, LOP-600-27, LOP-600-36, LOP-600-48 and LOP-600-54. single output output: 599,4 to 604,8W input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC maximal input inrush current: 80A no-load power: &lt;0,5W withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 127x76,2x33,5mm weight: 480g

Specifications

manufacturer
Manufacturer's name LOP-600-18
Output voltage [V] 18
Efficiency [%] 94
Output current [A] 33,3
Output power [W] 599,4
Ripple [mVp-p] 180
Data Sheet

Unit price

68,49 €

Volume discounts

Quantity Unit price
50 + 66,19 €

Stock: 0
Next incoming goods:
CW 23/2024
10 units

Further delivery:
CW 35/2024
