> Power supplies>Power supplies>Switching power supplies for illumination, LED>Mean Well LED drivers, 35W, IP67, constant current, LPC-35 series>LPC-35-1400

Manufacturers

LPC-35-1400

Mean Well LED driver series LPC-35

LED drivers in a plastic housing (IP67) with a constant current, 35W and a universal input. They comply with UL1310 class 2, UL1310, EN62368-1, IEC62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPC-35-700, LPC-35-1050 and LPC-35-1400.

  • single output
  • output: 31,5 to 33,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 55A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -30 to +70°C

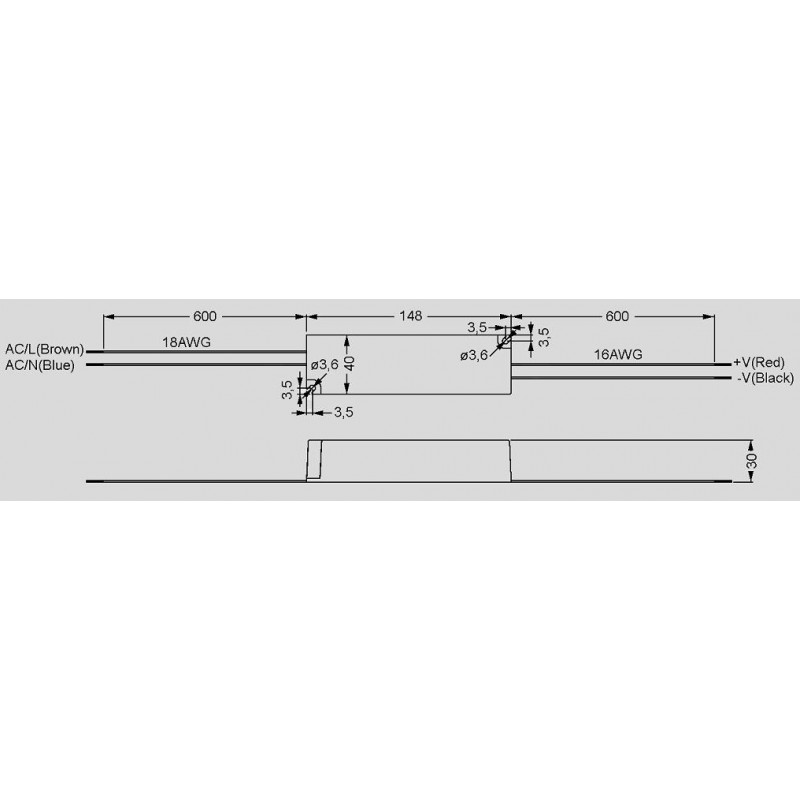

  • dimensions: 148x40x30mm
  • weight: 340g
Meanwell LPC-35 series

LPC-35-1400

33056 LPC-35-1400 LPC-35-1400 4711287455891 Mean Well LED driver series LPC-35. LED drivers in a plastic housing (IP67) with a constant current, 35W and a universal input. They comply with UL1310 class 2, UL1310, EN62368-1, IEC62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: LPC-35-700, LPC-35-1050 and LPC-35-1400. single output output: 31,5 to 33,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 55A withstand voltage I/P-O/P: 3000V AC operating temperature: -30 to +70°C dimensions: 148x40x30mm weight: 340g

Specifications

manufacturer
Manufacturer's name LPC-35-1400
GTIN 4711287455891
Output voltage [V] 9...24
Phase 2 phase
Output current tolerance [%] 5
Efficiency [%] 85
Output current range [A] 1,4
Output power [W] 33,6
Ripple [mV] 200
Data Sheet

Unit price

12,19 €

Volume discounts

Quantity Unit price
50 + 11,29 €

Stock: 254
Further delivery:
CW 33/2024
