LPF-40D-48

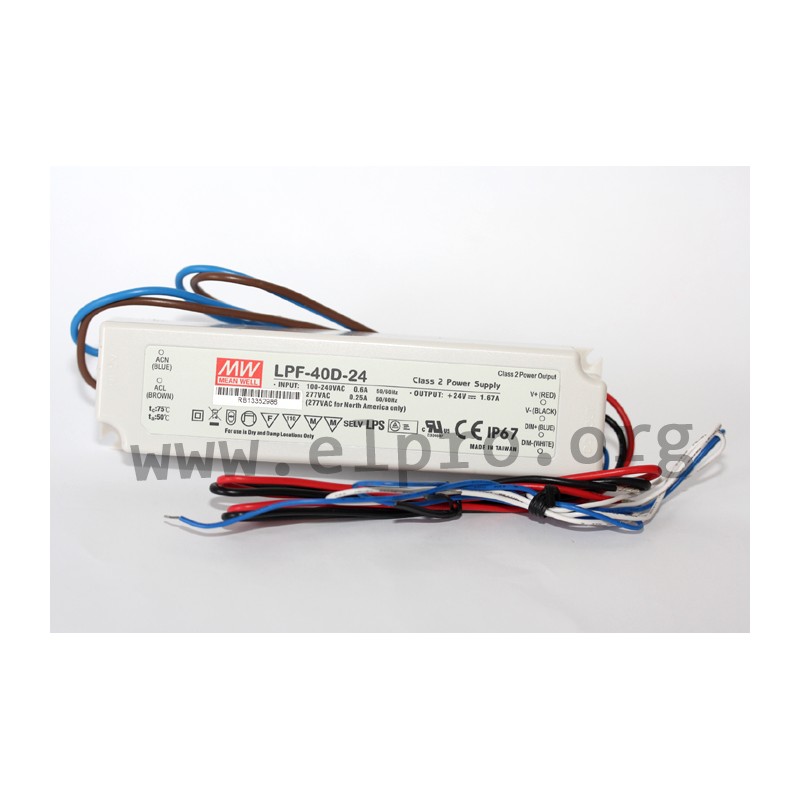

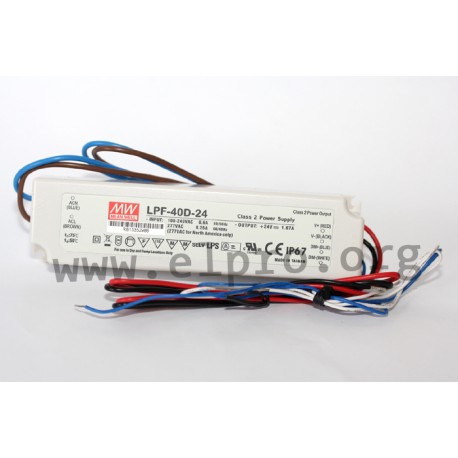

LED power supply LPF-40D by Meanwell

These power supplies have a plastic housing and are destined for indoor and outdoor LED and illumination installations (IP67). They conform UL1310, Class 2, and are endued with built-in active PFC function, universal input, constant current, built-in 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and also protected against overload by current limiting (auto recovery), short circuit and overvoltage. We have the following types by Mean Well for sale: LPF-40D-12, LPF-40D-15, LPF-40D-20, LPF-40D-24, LPF-40D-30, LPF-40D-36, LPF-40D-42, LPF-40D-48 and LPF-40D-54

* output: 40 to 41 Watt
* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz)
* maximal input inrush current: 75A
* 60 to 100% output constant current range
* 95 to 108% overload protection
* I/P-O/P, withstand voltage: 3750 V AC
* operating temperature: -40 to +70 °C
* by Mean Well
* weight: 0.44 kg

LPF-40D-48

36170 LPF-40D-48 LPF-40D-48 LED power supply LPF-40D by Meanwell. These power supplies have a plastic housing and are destined for indoor and outdoor LED and illumination installations (IP67). They conform UL1310, Class 2, and are endued with built-in active PFC function, universal input, constant current, built-in 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and also protected against overload by current limiting (auto recovery), short circuit and overvoltage. We have the following types by Mean Well for sale: LPF-40D-12, LPF-40D-15, LPF-40D-20, LPF-40D-24, LPF-40D-30, LPF-40D-36, LPF-40D-42, LPF-40D-48 and LPF-40D-54* output: 40 to 41 Watt* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz)* maximal input inrush current: 75A* 60 to 100% output constant current range* 95 to 108% overload protection* I/P-O/P, withstand voltage: 3750 V AC* operating temperature: -40 to +70 °C* by Mean Well* weight: 0.44 kg

Data sheet

manufacturer
manufacturer's name LPF-40D-48
output voltage [V] 48
phase 2 phase
efficiency [%] 90
output current range [A] 0,84
output voltage tolerance: [%] 4
output power [W] 40,32
ripple [mVp-p] 250

Download

Data Sheet

23,80 €

Volume discounts

20 pcs. / 21,00 €

stock: 60
