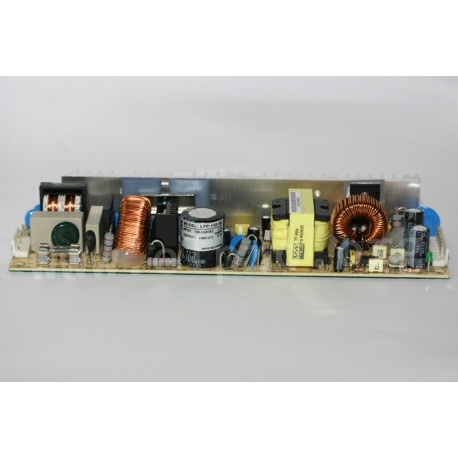

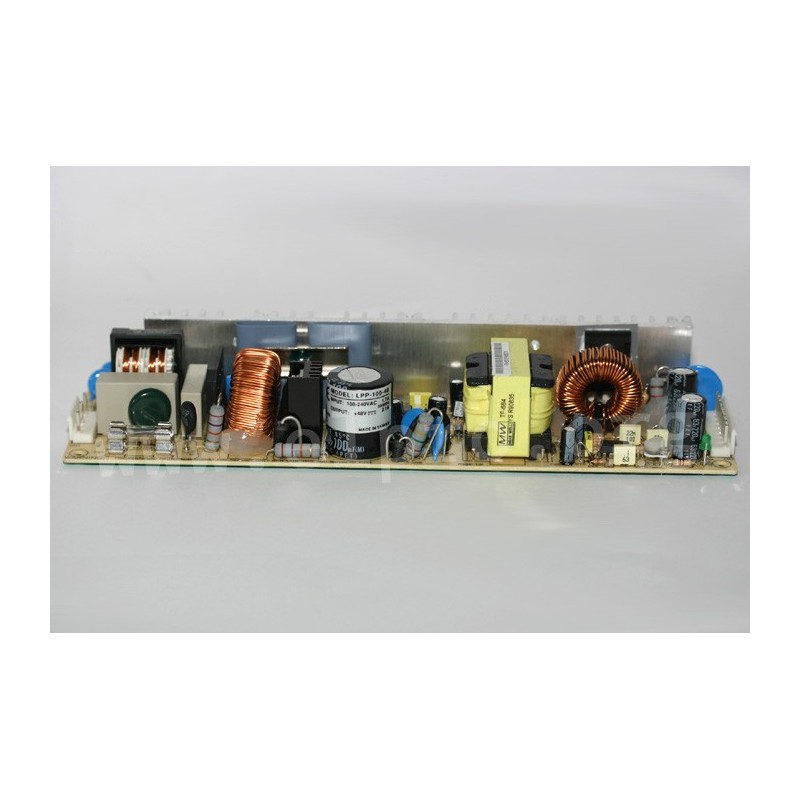

LPP-100-3.3

Mean Well power supply series LPP-100

Open frame type switching power supplies with 100W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC functiond and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: LPP-100-3.3, LPP-100-5, LPP-100-7.5, LPP-100-12, LPP-100-13.5, LPP-100-15, LPP-100-24, LPP-100-27 and LPP-100-48.

  • single output
  • output: 66 to 102,6W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 30A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 510g
LPP-100-3.3, Mean Well switching power supplies, 100W, open frame PCB, LPP-100 series

LPP-100-3.3

244980 LPP-100-3.3 LPP-100-3.3 4711287425900 Mean Well power supply series LPP-100. Open frame type switching power supplies with 100W, a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC functiond and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: LPP-100-3.3, LPP-100-5, LPP-100-7.5, LPP-100-12, LPP-100-13.5, LPP-100-15, LPP-100-24, LPP-100-27 and LPP-100-48. single output output: 66 to 102,6W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 30A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 510g

Specifications

manufacturer
Manufacturer's name LPP-100-3.3
GTIN 4711287425900
Output voltage [V] 3,3
Phase 2 phase
Efficiency [%] 69
Output current range [A] 0...20
Output voltage tolerance: [%] 2
Output power [W] 66
Output rated current [A] 20
Ripple [mV] 100
Data Sheet

Unit price

27,19 €

Stock: 0
Further delivery:
CW 05/2026
