LPV-150-12

Mean Well LED driver series LPV-150

LED drivers in a plastic housing (IP67) with a constant voltage and 150W. These devices are not dimmable and are suitable for LED lighting applications. They comply with UL8750, IEC62368-1, EN62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: LPV-150-12, LPV-150-15, LPV-150-24, LPV-150-36 and LPV-150-48.

  • single output
  • output: 120 to 153,6W
  • input voltage: 180 to 305V AC (47 to 63Hz), 254 to 431V DC
  • maximal input inrush current: 60A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +65°C

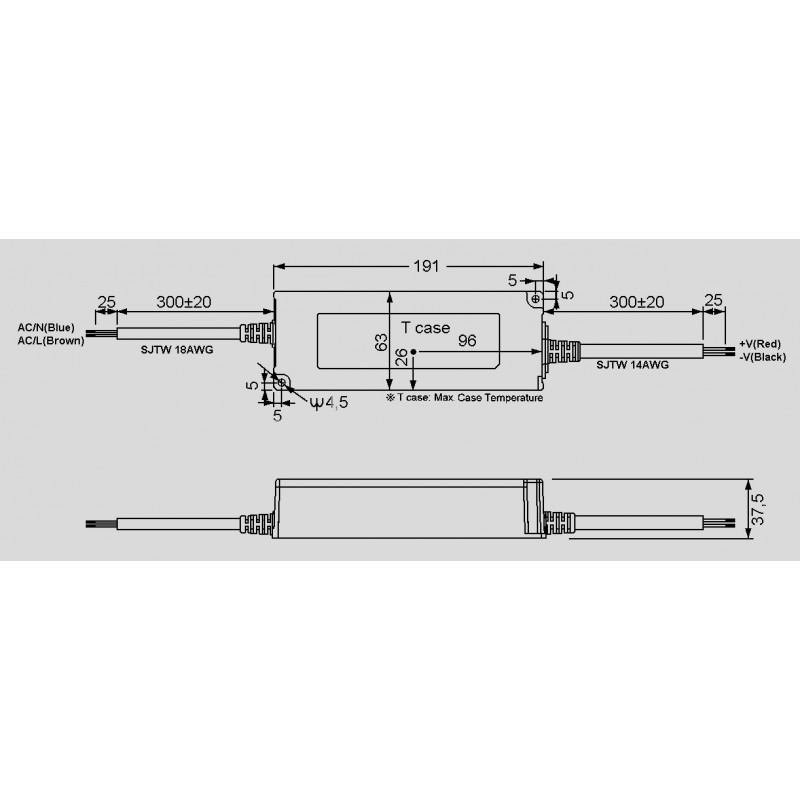

  • dimensions: 191x63x37,5mm
  • weight: 740g

LPV-150-12

45001 LPV-150-12 LPV-150-12 4711287455839 Mean Well LED driver series LPV-150. LED drivers in a plastic housing (IP67) with a constant voltage and 150W. These devices are not dimmable and are suitable for LED lighting applications. They comply with UL8750, IEC62368-1, EN62368-1 as well as EN55032 class B and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: LPV-150-12, LPV-150-15, LPV-150-24, LPV-150-36 and LPV-150-48. single output output: 120 to 153,6W input voltage: 180 to 305V AC (47 to 63Hz), 254 to 431V DC maximal input inrush current: 60A withstand voltage I/P-O/P: 3000V AC operating temperature: -25 to +65°C dimensions: 191x63x37,5mm weight: 740g

Specifications

manufacturer
Manufacturer's name LPV-150-12
GTIN 4711287455839
Output voltage [V] 12
Efficiency [%] 87
Output current range [A] 0...10
Output voltage tolerance: [%] 5
Output power [W] 120
Ripple [mVp-p] 200
Data Sheet
