LRS-100N2-12

Mean Well power supply series LRS-100N2

Switching power supplies in an enclosed housing with 100W, screw terminals and a universal input. These devices have a built-in active PFC function and are suitable for a peak power of up to 200% for a maximum of 5 seconds. They are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61558-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-100N2-12, LRS-100N2-24, LRS-100N2-36 and LRS-100N2-48.

  • single output
  • output: 100,8 to 102W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
  • maximal input inrush current: 55A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 350g

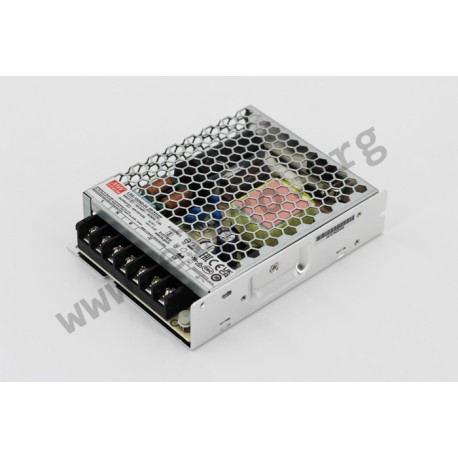

LRS-100N2-12, Mean Well switching power supplies, 100W, 200% peak power, LRS-100N2 series

LRS-100N2-12

243454 LRS-100N2-12 LRS-100N2-12 Mean Well power supply series LRS-100N2. Switching power supplies in an enclosed housing with 100W, screw terminals and a universal input. These devices have a built-in active PFC function and are suitable for a peak power of up to 200% for a maximum of 5 seconds. They are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61558-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-100N2-12, LRS-100N2-24, LRS-100N2-36 and LRS-100N2-48. single output output: 100,8 to 102W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC maximal input inrush current: 55A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 350g

Specifications

manufacturer
Manufacturer's name LRS-100N2-12
Output voltage [V] 12
Efficiency [%] 88
Output current range [A] 0...8,5
Output voltage tolerance: [%] ±1
Output power [W] 102
Ripple [mVp-p] 120
Data Sheet

Unit price

14,29 €

Volume discounts

Quantity Unit price
50 + 13,49 €

Stock: 0
Next incoming goods:
CW 50/2025
20 units

Further delivery:
CW 05/2026
