Mean Well power supply series LRS-100N2

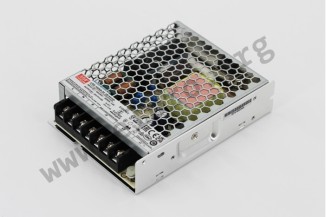

Switching power supplies in an enclosed housing with 100W, screw terminals and a universal input. These devices have a built-in active PFC function and are suitable for a peak power of up to 200% for a maximum of 5 seconds. They are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN61558-1, EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-100N2-12, LRS-100N2-24, LRS-100N2-36 and LRS-100N2-48.

single output
output: 100,8 to 102W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
maximal input inrush current: 55A
leakage current: <0,75mA
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1250V AC
operating temperature: -30 to +70°C
weight: 350g
