LRS-150-36

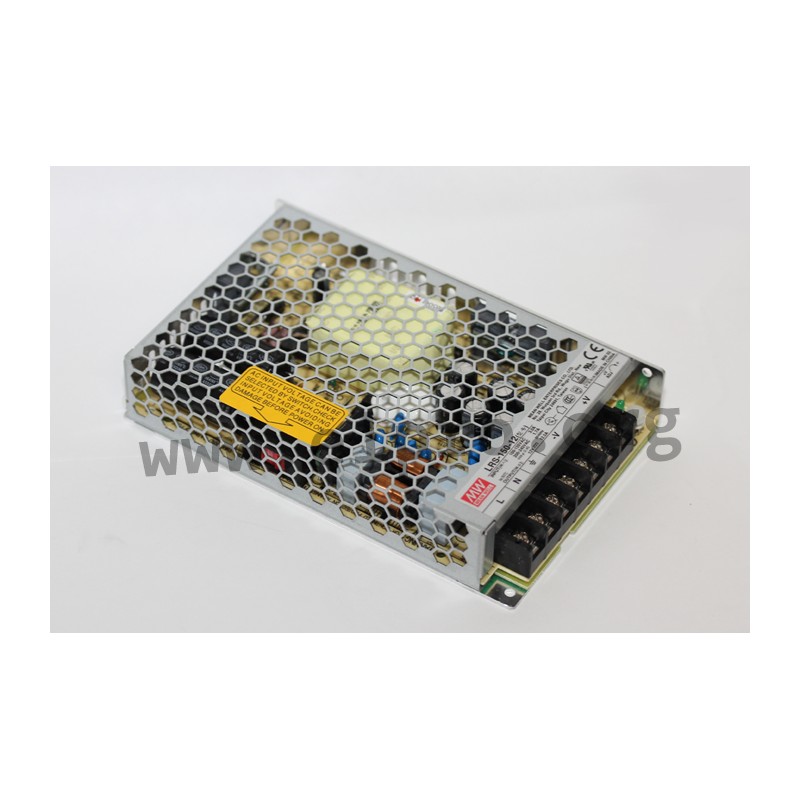

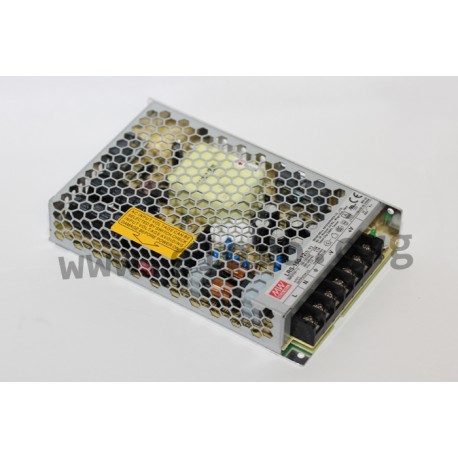

Mean Well power supply series LRS-150 and LRS-150F

Switching power supplies in an enclosed housing with 150W, screw terminals, a universal input (LRS-150F-_), a switch for selecting the AC input voltage range (LRS-150-_) and a low profile. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-150-12, LRS-150-15, LRS-150-24, LRS-150-36, LRS-150-48, LRS-150F-5, LRS-150F-12, LRS-150F-15, LRS-150F-24, LRS-150F-36 and LRS-150F-48.

  • single output
  • output: 110 to 158,4W
  • input voltage LRS-150-_: 85 to 132V AC / 170 to 264V AC (47 to 63Hz), 120 to 370V DC
  • input voltage LRS-150F-_: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • output voltage adjustment: ±10%
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 480g

LRS-150-36

104501 LRS-150-36 LRS-150-36 4711287434780 Mean Well power supply series LRS-150 and&nbsp;LRS-150F. Switching power supplies in an enclosed housing with 150W, screw terminals, a universal input (LRS-150F-_), a switch for selecting the AC input voltage range (LRS-150-_) and a low profile. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power and comply with&nbsp;EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series:&nbsp;LRS-150-12, LRS-150-15, LRS-150-24, LRS-150-36, LRS-150-48, LRS-150F-5, LRS-150F-12, LRS-150F-15, LRS-150F-24, LRS-150F-36 and LRS-150F-48. single output output: 110 to 158,4W input voltage LRS-150-_: 85 to 132V AC / 170 to 264V AC (47 to 63Hz), 120 to 370V DC input voltage LRS-150F-_: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 60A leakage current: &lt;0,75mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 110 to 140% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 480g

Specifications

manufacturer
Manufacturer's name LRS-150-36
GTIN 4711287434780
Output voltage [V] 36
Efficiency [%] 89
Output current range [A] 0...4,3
Output voltage tolerance: [%] 1
Output power [W] 154,8
Ripple [mVp-p] 200
Data Sheet

Unit price

16,19 €

Volume discounts

Quantity Unit price
50 + 15,09 €

Stock: 608
Further delivery:
CW 06/2025
