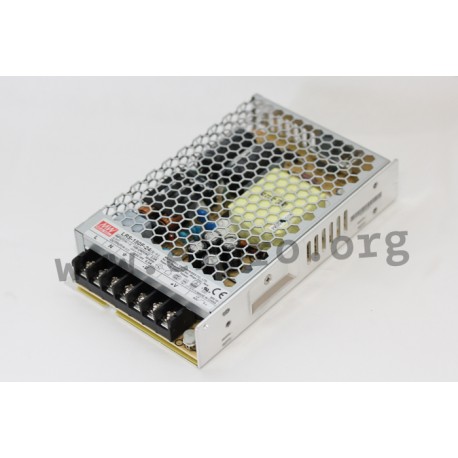

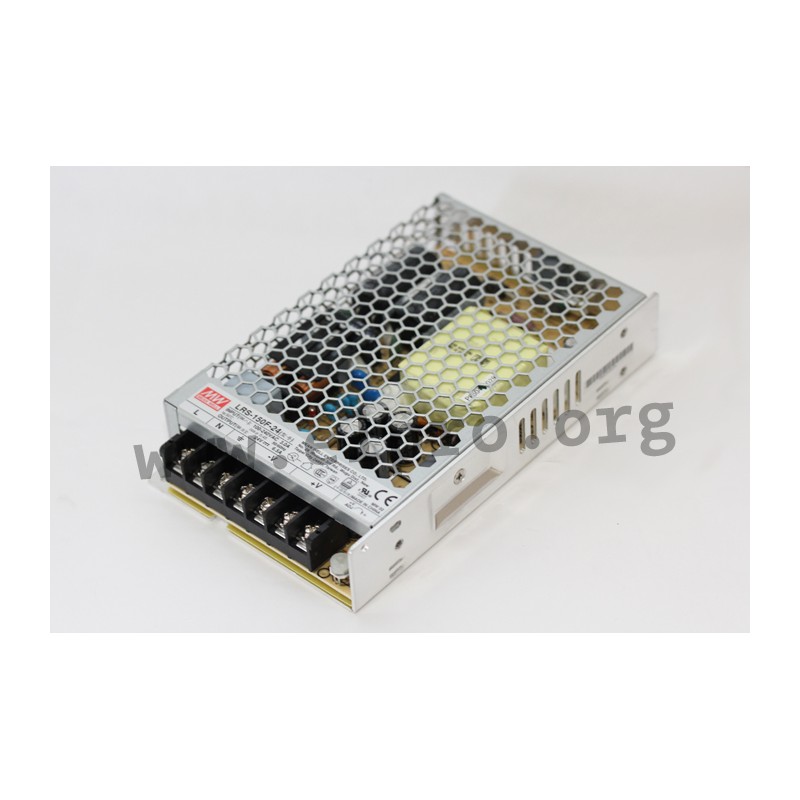

Switching power supplies in an enclosed housing with 150W, screw terminals, a universal input (LRS-150F-_), a switch for selecting the AC input voltage range (LRS-150-_) and a low profile. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-150-12, LRS-150-15, LRS-150-24, LRS-150-36, LRS-150-48, LRS-150F-5, LRS-150F-12, LRS-150F-15, LRS-150F-24, LRS-150F-36 and LRS-150F-48.
Discontinued items. Only remainder of stock available.
|Output voltage [V]||24|
|Output current range [A]||0...6,5|
|Output voltage tolerance: [%]||1|
|Output power [W]||156|
