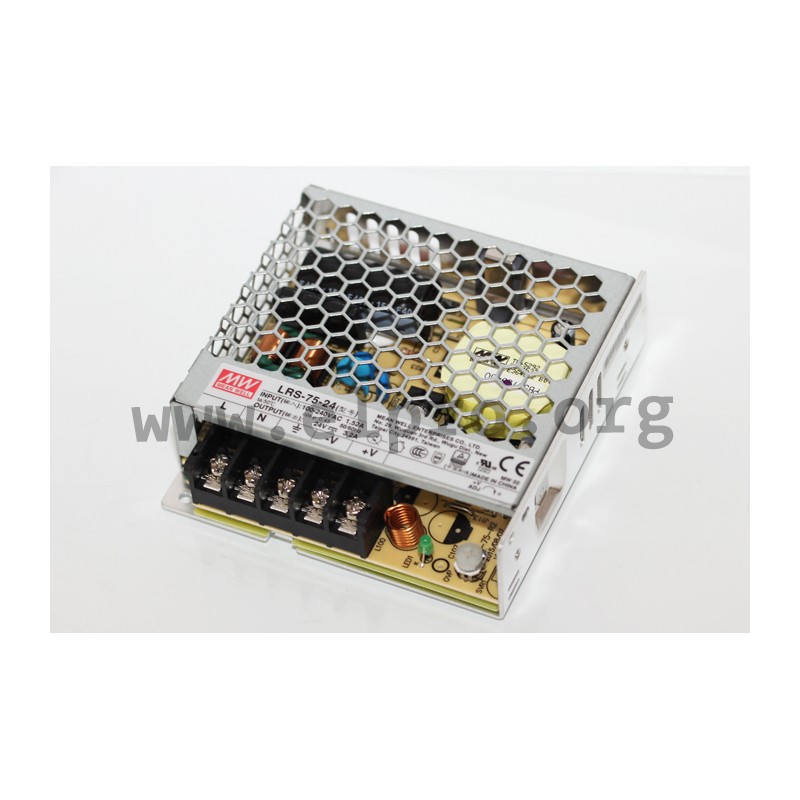

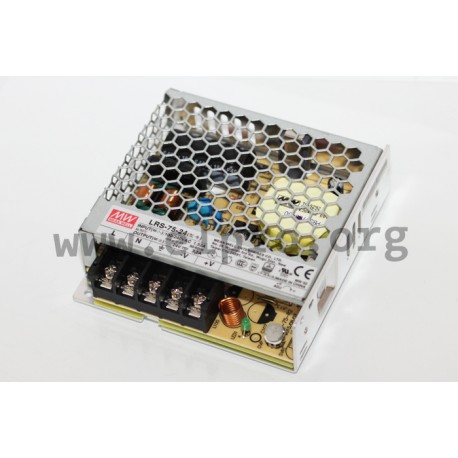

Switching power supplies in an enclosed housing with 75W, a low profile, screw terminals and a universal input. These devices have a low no-load power and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-75-5, LRS-75-12, LRS-75-15, LRS-75-24, LRS-75-36 and LRS-75-48.
Discontinued items. Only remainder of stock available.
|Output voltage [V]||36|
|Output current range [A]||0...2,1|
|Output power [W]||75,6|
|Output voltage tolerance: [%]||1|
